| Place of Origin: | Mainland China |
| Brand Name: | IKP |
| Certification: | RoHs/CE/UL/SGS |
| Model Number: | IKP-CTX1106-2515 |
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | USD:0.2-8.0 |
| Packaging Details: | CTN |
| Delivery Time: | 3-10 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20,000PCS/WEEK |
Description

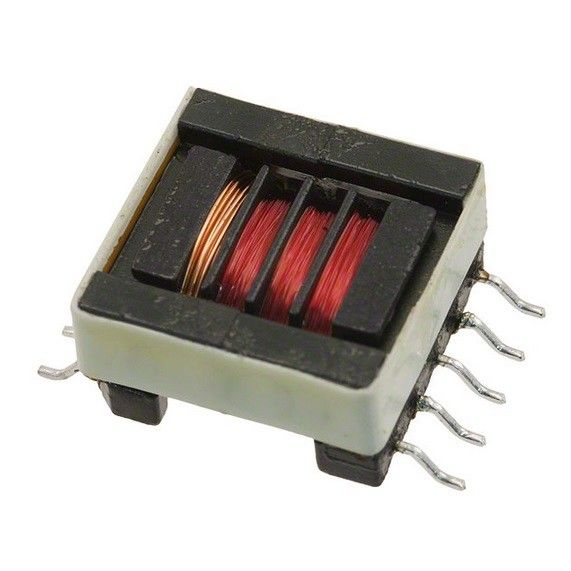

•Transformer for use in CCFL power supplies, available in through-hole and surface mount recess or gull wing versions, incorporating floating or fixed secondary technology
•Supply output current up to 30 milli-Amps
•Frequency range from 40 to 80 KHz
•Deliver output power:2.5Watts
•Operate in royer and other topologies
•Ferrite core material
Applications
•CCFL power supplies
Environmental Data
•Storage temperature range: -40℃ to +85℃
•Operating ambient temperature range: 0℃ to +70℃
•Solder reflow temperature: +260℃max, for 10 seconds max
Packaging
•Supplied in bulk packaging
|
Part Number |
Schematic Diagram |
Pout Walts |
Lp μH2 |
DCRp Ohms Max |
DCRs Ohms Max |
TR Ns/Np |
Vpri Volts Max2 |
Vsec Volt Max2 |
Is Max A rms |
Vpri Abnormal2 |
Vsec Abnormal3 |
|
CTX110652-R |
A |
2.5 |
43 |
0.220 |
285 |
67 |
20 |
1340 |
.005 |
30 |
2000 |
|
CTX110655-R |
B |
2.5 |
43 |
0.220 |
285 |
67 |
20 |
1340 |
.005 |
30 |
2000 |
|
CTX110657-R |
B |
2.5 |
26 |
0.212 |
285 |
86 |
15 |
1340 |
.005 |
23 |
2000 |
|
CTX110659-R |
B |
2.5 |
19 |
0.190 |
285 |
100 |
13 |
1340 |
.005 |
23 |
2000 |
|
CTX210652-R |
A |
2.5 |
43 |
0.220 |
285 |
67 |
20 |
1340 |
.005 |
30 |
2000 |
|
CTX210655-R |
B |
2.5 |
43 |
0.220 |
285 |
67 |
20 |
1340 |
.005 |
30 |
2000 |
|
CTX210657-R |
B |
2.5 |
26 |
0.212 |
285 |
86 |
15 |
1340 |
.005 |
23 |
2000 |
|
CTX210659-R |
B |
2.5 |
19 |
0.190 |
285 |
100 |
13 |
1340 |
.005 |
23 |
2000 |
