| Place of Origin: | CHINA |
| Brand Name: | IKP |
| Certification: | CE/UL/REACH/ROHS |

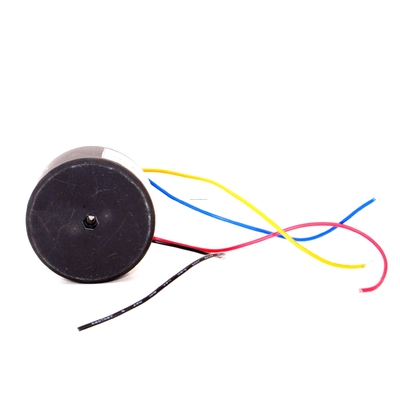

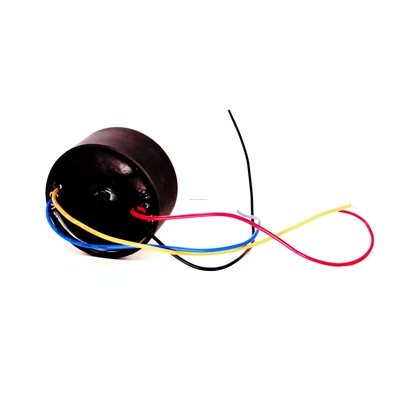

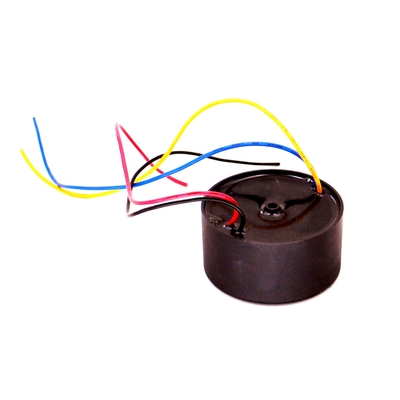

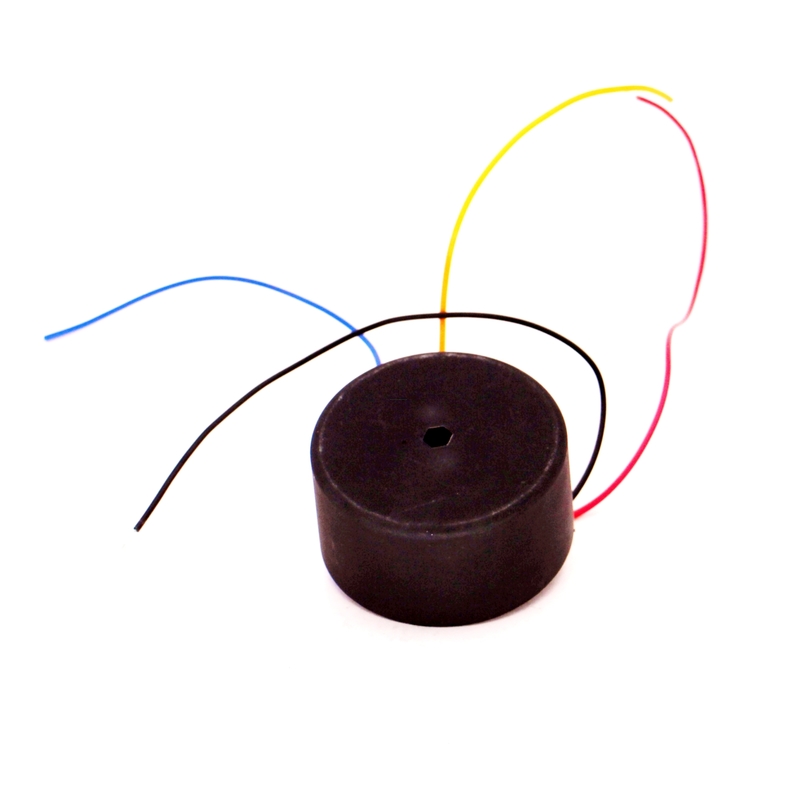

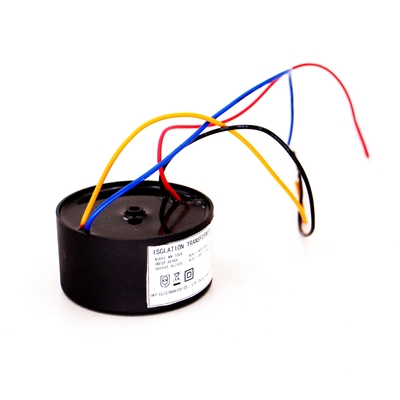

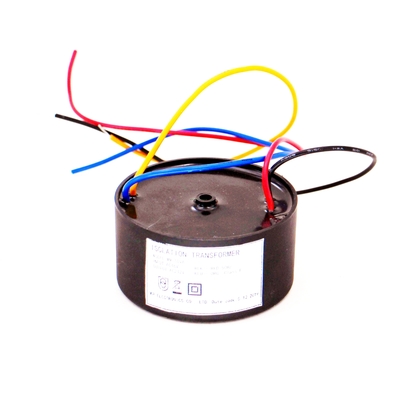

| Model Number: | Toroidal Transformer |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 3.00-20.00 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
Specifications:
• Power range:100VA to 10KVA
• Input / Output: Customized
• Insulation Class: UL class B, F, H, N (optional)
• Isolation: 4KV (Hi-pot)
• Easy to change diameter and height of the core
• Customized specifications are welcome
|
Rated Power (VA) |
Outside Dimension D*H(mm) |
Weight (kg) |
Temp. Rise (℃) |
Approval |
| 100 | 100*50 | 1.25 | 51 | UL/CE/RoHS/CQC |
| 230 | 120*60 | 2.35 | 53 | UL/CE/RoHS/CQC |
| 400 | 140*60 | 3.57 | 54 | UL/CE/RoHS/CQC |
| 600 | 155*75 | 5.12 | 56 | UL/CE/RoHS/CQC |
| 750 | 165*77 | 6.37 | 57 | UL/CE/RoHS/CQC |
| 1000 | 175*88 | 8.50 | 58 | UL/CE/RoHS/CQC |
| 1500 | 208*100 | 11.70 | 59 | UL/CE/RoHS/CQC |
| 2000 | 208*125 | 14.70 | 60 | UL/CE/RoHS/CQC |
| 2500 | 215*130 | 17.70 | 61 | UL/CE/RoHS/CQC |
| 3000 | 225*140 | 20.12 | 62 | UL/CE/RoHS/CQC |
| 5000 | 260*150 | 29.20 | 63 | UL/CE/RoHS/CQC |
| 10000 | 320*155 | 51.00 | 65 | UL/CE/RoHS/CQC |
◆We can design and manufacture customized part with specific requirement
