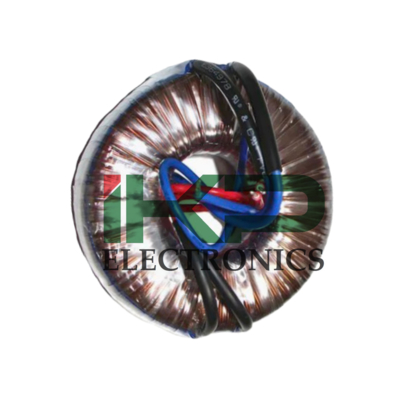

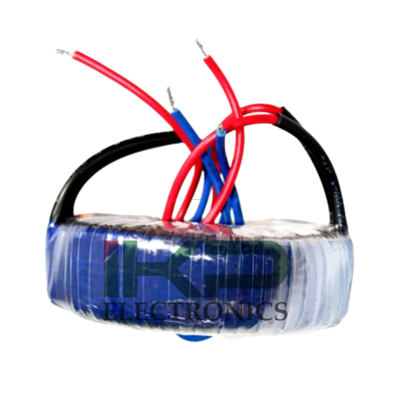

105VA Rated Power Toroidal Transformer for Door Control System

105VA Rated Power Toroidal Transformer for Door Control System

    • 105VA Rated Power Toroidal Transformer for Door Control System
    • 105VA Rated Power Toroidal Transformer for Door Control System
    • 105VA Rated Power Toroidal Transformer for Door Control System
    • 105VA Rated Power Toroidal Transformer for Door Control System
    • 105VA Rated Power Toroidal Transformer for Door Control System
    • 105VA Rated Power Toroidal Transformer for Door Control System
  • 105VA Rated Power Toroidal Transformer for Door Control System

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: Toroidal Transformer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 3.00-20.00
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Specifications:

    • Power range:60VA to 150VA

    • Input / Output: Customized

    • Work Circle: Customized, such as ED 80%

    • Insulation Class: UL class B, F, H, N (optional)

    • Isolation: 4KV (Hi-pot)

    • Easy to change diameter and height of the core

    • Customized specifications are welcome

    Rated Power

    (VA)

    Frequency

    (Hz)

    Outside Dimension

    D*H(mm)

    Weight

    (kg)

    Temp. Rise

    ()

    Approval
    60 50/60 98*35 0.9 48 UL/CE/RoHS/CQC
    80 50/60 98*45 1.25 53 UL/CE/RoHS/CQC
    105 50/60 98*45 1.30 54 UL/CE/RoHS/CQC
    120 50/60 98*45 1.35 55 UL/CE/RoHS/CQC
    150 50/60 98*55 1.60 56 UL/CE/RoHS/CQC

    We can design and manufacture customized part with specific requirement

    105VA Rated Power Toroidal Transformer for Door Control System◆We can design and manufacture customized part with specific requirement



    105VA Rated Power Toroidal Transformer for Door Control System105VA Rated Power Toroidal Transformer for Door Control System105VA Rated Power Toroidal Transformer for Door Control System105VA Rated Power Toroidal Transformer for Door Control System
