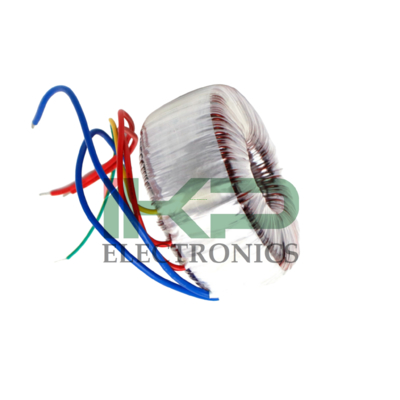

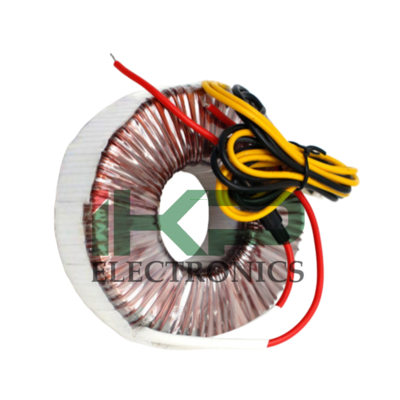

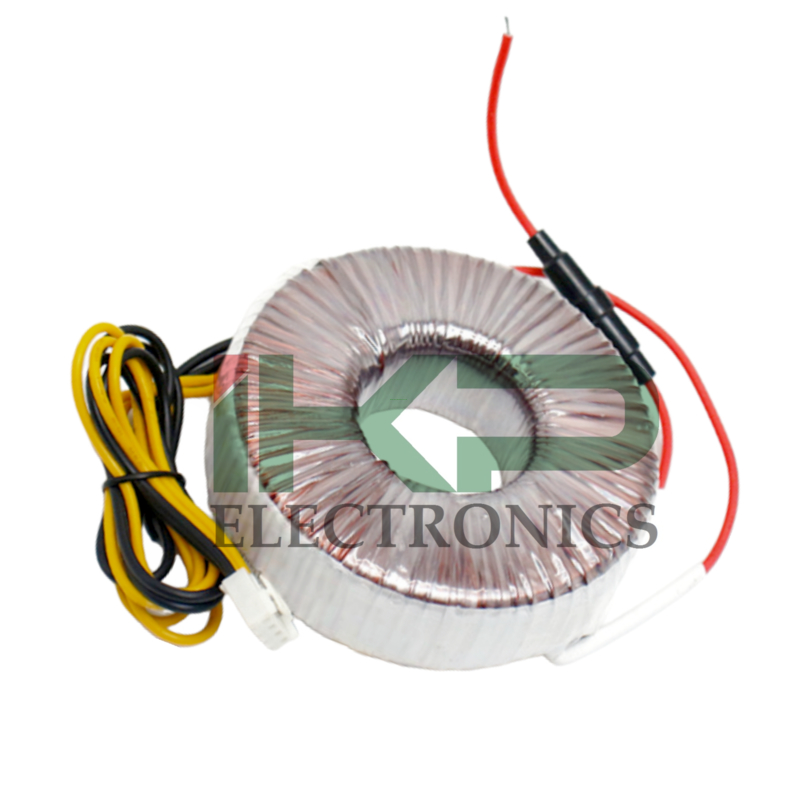

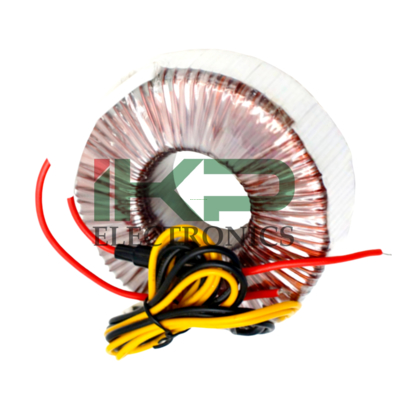

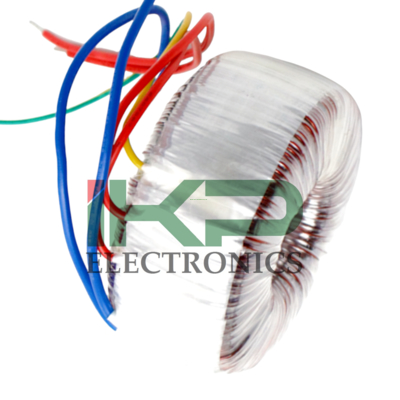

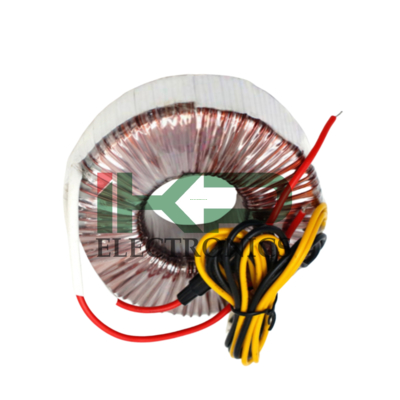

250VA Power Range Toroidal Transformer for Industrial Control

250VA Power Range Toroidal Transformer for Industrial Control

    • 250VA Power Range Toroidal Transformer for Industrial Control
    • 250VA Power Range Toroidal Transformer for Industrial Control
    • 250VA Power Range Toroidal Transformer for Industrial Control
    • 250VA Power Range Toroidal Transformer for Industrial Control
    • 250VA Power Range Toroidal Transformer for Industrial Control
    • 250VA Power Range Toroidal Transformer for Industrial Control
    • 250VA Power Range Toroidal Transformer for Industrial Control

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: Toroidal Transformer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 3.00-20.00
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Specifications:

    • Power range:25VA to 2500VA

    • Phase: Single / Three phase

    • Input / Output: Customized

    • Insulation Class: UL class B, F, H, N (optional)

    • Isolation: 4KV (Hi-pot)

    • Easy to change diameter and height of the core

    • Customized specifications are welcome

    Rated Power

           (VA)

     Frequency

           (Hz)

     Outside Dimension

             D*H(mm)

       Weight

          (kg)

      Temp. Rise

             (℃)

    		             Approval
    25 50/60 80*32 0.54 30 UL/CE/RoHS/CQC
    50 50/60 80*37 0.71 45 UL/CE/RoHS/CQC
    100 50/60 95*45 1.24 51 UL/CE/RoHS/CQC
    160 50/60 103*47 1.75 53 UL/CE/RoHS/CQC
    250 50/60 118*53 2.36 53 UL/CE/RoHS/CQC
    500 50/60 140*65 4.2 55 UL/CE/RoHS/CQC
    1000 50/60 170*75 7.2 58 UL/CE/RoHS/CQC
    2500 50/60 190*115 14.5 63 UL/CE/RoHS/CQC

    ◆We can design and manufacture customized part with specific requirement

    250VA Power Range Toroidal Transformer for Industrial Control



    250VA Power Range Toroidal Transformer for Industrial Control250VA Power Range Toroidal Transformer for Industrial Control250VA Power Range Toroidal Transformer for Industrial Control250VA Power Range Toroidal Transformer for Industrial Control
