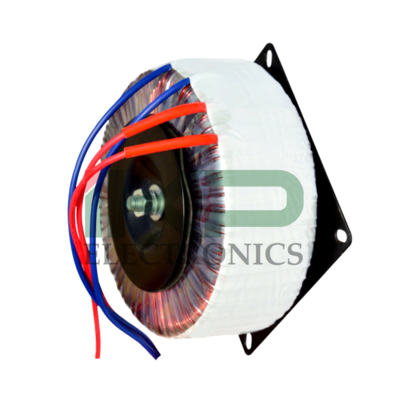

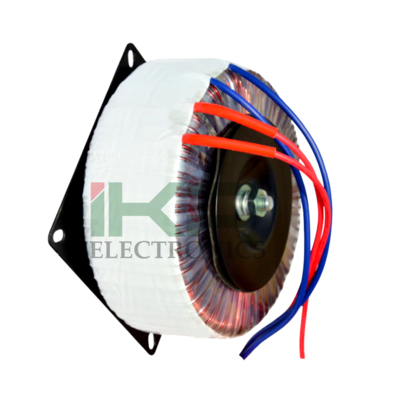

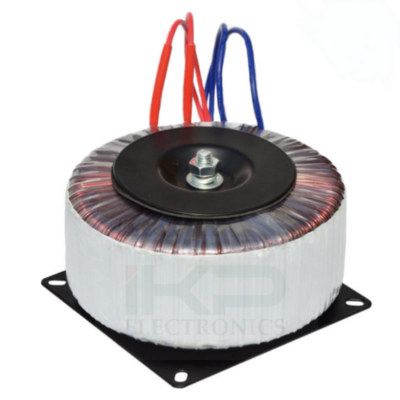

1000VA Power Range Toroidal Transformer for Solar Power

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	Toroidal Transformer

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	3.00-20.00
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Specifications:

• Power range: 1000VA to 5200VA

• Phase: Single / Three phase

• Input / Output: Customized

• Insulation Class: UL class B, F, H, N (optional)

• Isolation: 4KV (Hi-pot)

• Easy to change diameter and height of the core

• Customized specifications are welcome

Rated Power (VA)	Efficiency (%)	Outside Dimension D*H(mm)	Weight (kg)	Approval
1000	97.0	175*85	9.1	UL/CE/RoHS/CQC
1500	97.0	195*85	11.5	UL/CE/RoHS/CQC
2000	97.5	210*90	14.7	UL/CE/RoHS/CQC
2500	97.5	210*100	16.7	UL/CE/RoHS/CQC
3000	97.5	215*105	17.7	UL/CE/RoHS/CQC
3500	97.7	230*115	21.8	UL/CE/RoHS/CQC
4800	98.0	245*150	31.2	UL/CE/RoHS/CQC
5200	98.3	245*150	31.2	UL/CE/RoHS/CQC

◆We can design and manufacture customized part with specific requirement
