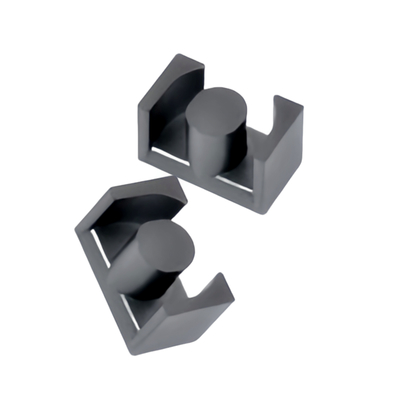

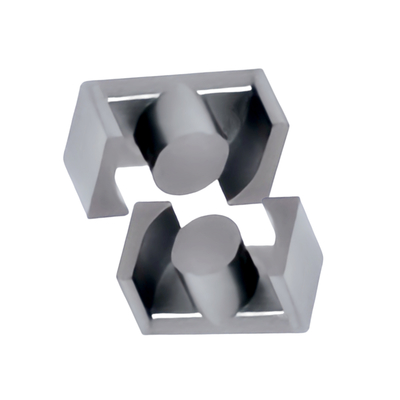

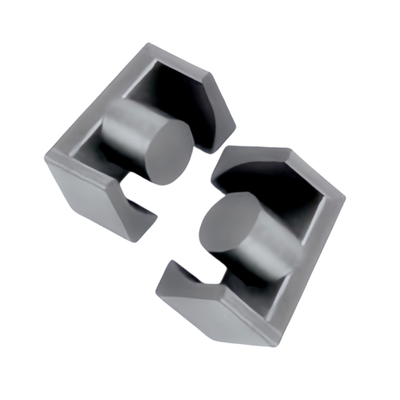

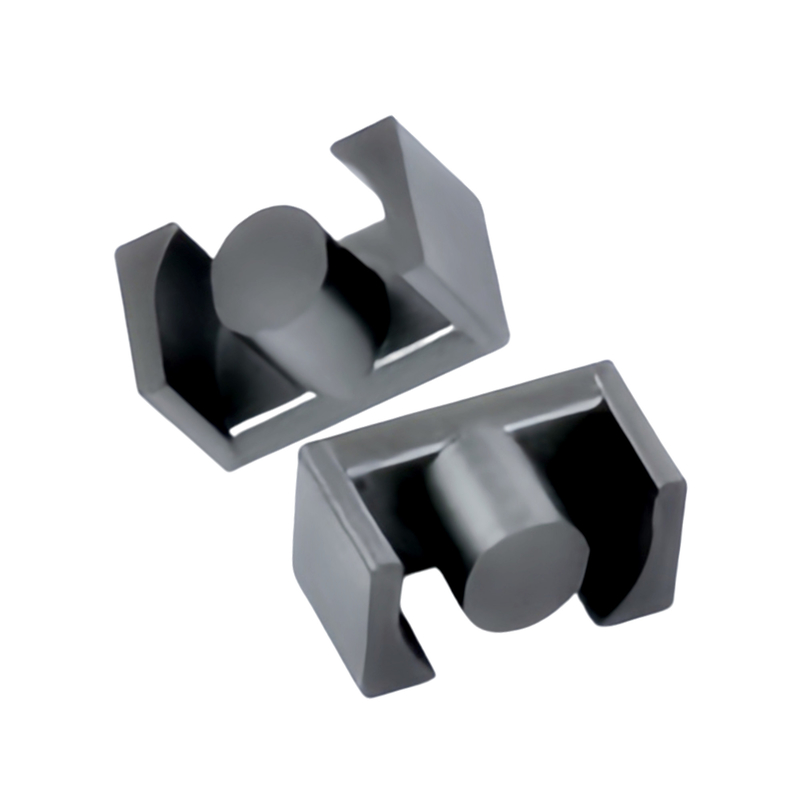

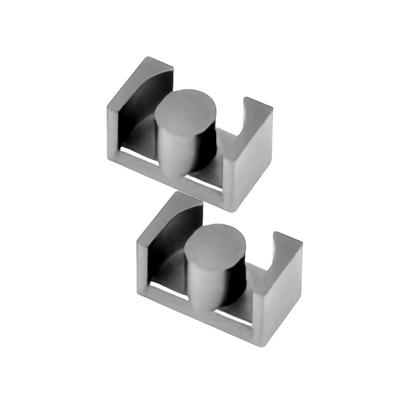

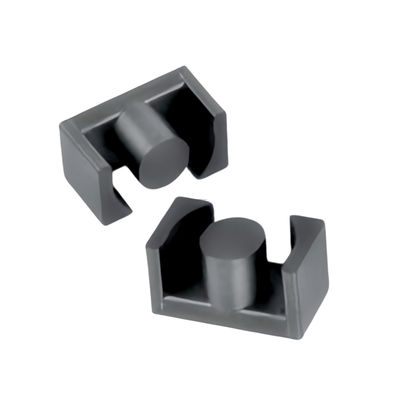

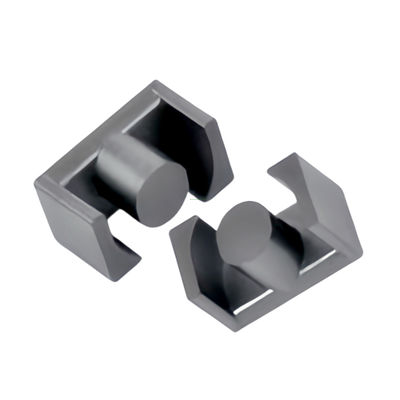

FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core

FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core

    • FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core
  • FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: ER272307

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.008-0.23
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Advantages

    1. High Magnetic Permeability

      Maintains high magnetic permeability under high-frequency conditions, making it suitable for high-frequency circuits.                                                                                                                            Both the initial permeability (μi) and maximum permeability (μm) are high, effectively enhancing inductance performance.
    2. Low Loss

      Lower eddy current loss and hysteresis loss at high frequencies, ideal for high-frequency applications.                                                                                                                                  Reduces energy loss and improves efficiency in high-frequency devices like switching power supplies.
    3. Good Frequency Characteristics

      Maintains stable inductance characteristics over a wide frequency range (e.g., 1kHz~1MHz).            Suitable for high-frequency filtering, energy storage, and other applications.
    4. Excellent DC Bias Characteristics

      Minimal inductance decay under DC bias fields, making it suitable for applications requiring superimposed DC.
    5. High Temperature Resistance and Reliability

      Operates over a wide temperature range (typically -40°C~125°C), suitable for harsh environments. High mechanical strength, resistant to deformation or cracking.
    6. Good Processability

      Can be fabricated into complex shapes for inductors, such as toroidal or E-shaped cores.              Easy to integrate with circuit boards, suitable for automated production.

    Application Fields

    1. Switching Power Supplies (SMPS)

      Used in high-frequency transformers, PFC inductors, and output filtering inductors to improve power efficiency and stability.                                                                                                                    Especially suitable for high-frequency (50kHz~1MHz) and high-power applications.
    2. Inverters and Converters

      Applied in solar inverters, motor drivers, and other devices for filtering and energy storage inductors.
    3. DC-DC Converters

      Used for energy storage inductors and filtering inductors, supporting efficient energy conversion.
    4. EMI Filters

      Employed at power input/output terminals to suppress electromagnetic interference and protect circuit stability.
    5. Communication Equipment

      Used in components such as choke coils and Baluns for high-frequency signal processing.
    6. Automotive Electronics

      Suitable for onboard chargers, DC-DC converters, and Battery Management Systems (BMS).              Meets automotive-grade high-temperature and vibration requirements.
    7. Renewable Energy Systems

      Used in wind power, photovoltaic systems, and other renewable energy systems for inductors in inverters and energy storage devices.
    8. Consumer Electronics

      Applied in smartphone fast-charging modules, laptop power adapters, etc., to meet miniaturization and high-efficiency demands.
    9. Industrial Automation

      Used in high-frequency inductor components for servo drives, PLC controllers, and other equipment.

                                                              FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core                                        FeSiAl Alloy Core Type ER272307 Series Parameters Silicon Steel Transformer Core

         Type Dimension(mm)
    A B C D E F G
    ER231409-060-XXX 23.3±0.3 13.9±0.2 8.7±0.2 9.0±0.2 19.4±0.3 6.2±0.3 15.1±0.3
    ER272307-060-XXX 26.4±0.4 22.6±0.3 6.7±0.2 12.4±0.2 22.4±0.3 3.55±0.3 15.3±0.3
    ER302008-060-XXX 30.0±0.4 20.0±0.3 7.5±0.2 12.0±0.2 25.6±0.3 4.2±0.3 15.6±0.3
    ER302012-060-XXX 30.0±0.4 20.0±0.3 11.8±0.2 12.0±0.2 25.6±0.3 8.5±0.3 15.6±0.3

                                                                              AL Value & Efective Parameters of ER-Cores

       Type

    Le

    (mm)

    Ae

    (mm2)

    Ve

    (mm3)

    AL(nH/N2)
    20 40 60
    ER231409-060-XXX 49.95 63.62 3463 42 64 96
    ER272307-060-XXX 44.40 120.76 5203 89 137 205
    ER302008-060-XXX 49.73 113.10 6393 74 114 171
    ER302012-060-XXX 66.65 113.10 8514 55 85 128
