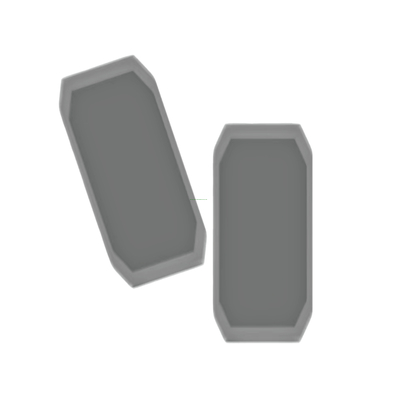

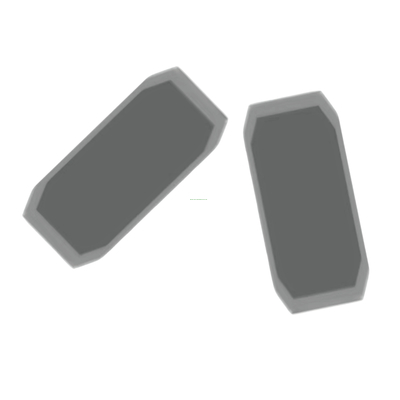

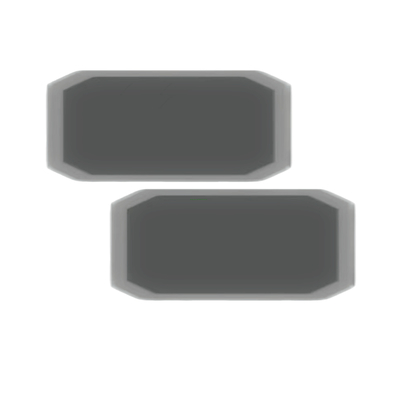

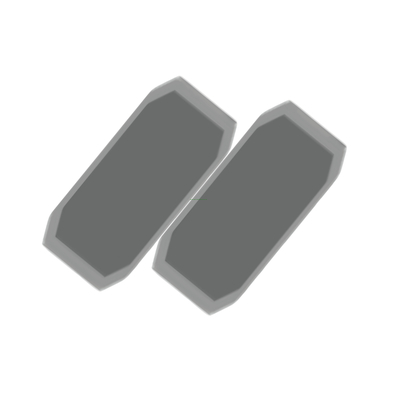

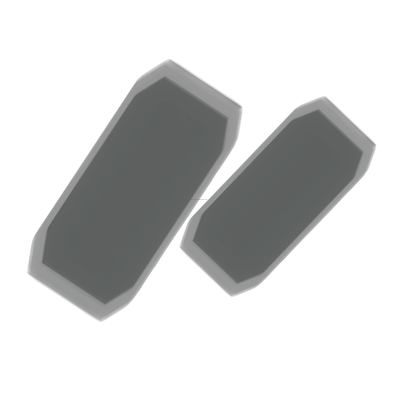

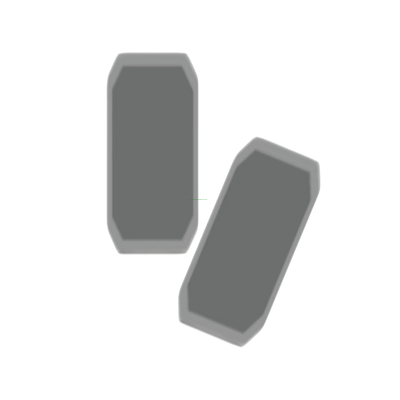

FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core

FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core

    • FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core
  • FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: TY924818

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.008-0.023
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

     I. Advantages of TY-Type Metal Powder Cores

    1. High Resistivity: The metal particles are coated with an insulating layer, significantly increasing the material's resistivity and reducing high-frequency eddy current losses, making it suitable for medium-to-high-frequency applications (e.g., 10 kHz to 1 MHz).

    2. Low Loss: Under high-frequency conditions, TY-type cores exhibit low iron loss and eddy current loss, ensuring high energy efficiency and suitability for energy conversion devices such as switching power supplies and inverters.

    3. Moderate Magnetic Permeability: The initial magnetic permeability (μi) typically ranges from 10 to 50, balancing inductance with saturation resistance, making it ideal for applications requiring moderate inductance.

    4. Good DC Bias Characteristics: The magnetic permeability degrades gradually when subjected to superimposed DC current, suitable for power inductors and filters that endure DC components.

    5. Excellent Temperature Stability: The magnetic permeability and loss remain stable within a wide temperature range (-40°C to 120°C), adapting to high-temperature or variable environments (e.g., automotive electronics, outdoor power supplies).

    6. Strong Mechanical Stress Resistance: The powder structure provides high mechanical strength, resisting damage from vibration or impact, making it suitable for harsh operating conditions.

    7. Cost-Effective: Compared to other soft magnetic materials (e.g., cobalt-based amorphous alloys), TY-type cores have lower raw material costs, enabling large-scale applications.

    II. Application Fields of TY-Type Metal Powder Cores

    1. Consumer Electronics:

      High-frequency inductors in fast charging modules for smartphones and laptop power supplies.          Filtering elements in LED driver power supplies and tablet chargers.
    2. New Energy Applications:

      High-frequency filtering inductors and energy storage inductors in photovoltaic inverters and energy storage systems.                                                                                                                                  Power inductors in electric vehicle charging piles and onboard DC-DC converters.
    3. Industrial Power Supplies:

      Energy storage inductors and output filtering inductors in switching power supplies (SMPS) and AC-DC power supplies.                                                                                                                              High-frequency inductive components in industrial inverters and servo drivers.
    4. Automotive Electronics:

      Anti-interference filtering inductors in onboard chargers and Electronic Brake Systems (EBR).          High-frequency noise suppression elements in Battery Management Systems (BMS).
    5. Communication Equipment:

      EMI filters (common-mode/differential-mode inductors) in communication base stations and routers.                                                                                                                                          Impedance-matching inductors and chokes in RF modules.
    6. Household Appliances:

      High-frequency inductors in power modules of smart appliances (e.g., air conditioners, washing machines).                                                                                                                                      Filtering elements in household LED lighting driver power supplies.
    7. Industrial Automation:

      Anti-interference filtering inductors in PLC controllers and industrial robots.                                        High-frequency noise suppression elements in sensor signal conditioning circuits.



    III. Typical Application Comparisons

               Vs. Ferrite: TY-type cores exhibit lower losses at higher frequencies (>100 kHz) and more stable permeability.

               Vs. MPP Cores: Lower cost, but with a cap on maximum permeability, making them suitable for cost-sensitive scenarios.

               Vs. Metallic Alloy Cores: Superior saturation resistance, suitable for high peak current applications (e.g., PFC inductors).

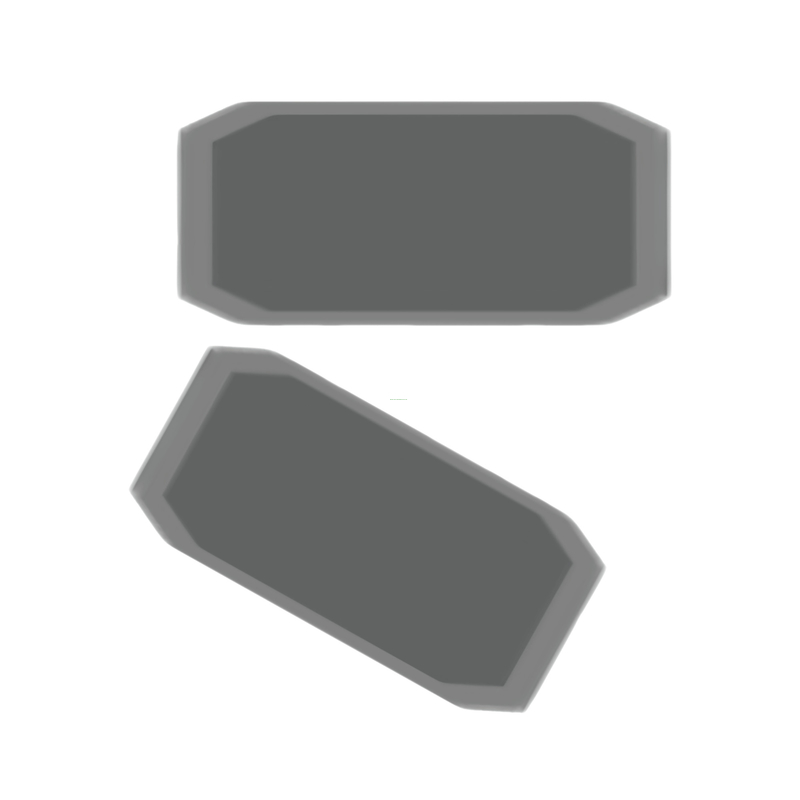

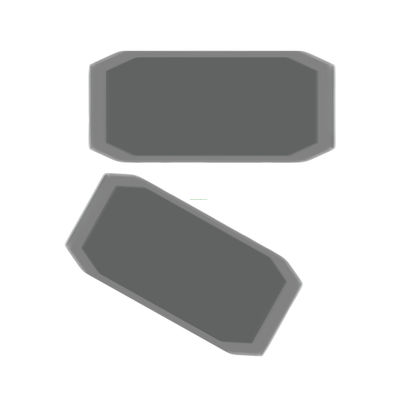

                 FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core                     FeSiAl Alloy Core Type TY924818 Series Parameters Silicon Steel Transformer Core

    Part Number

    A

    mm

    B mm C mm E mm D mm R mm

    TY924818-060-XXX 92.2 48.1 18 25 58.2 R2.0
