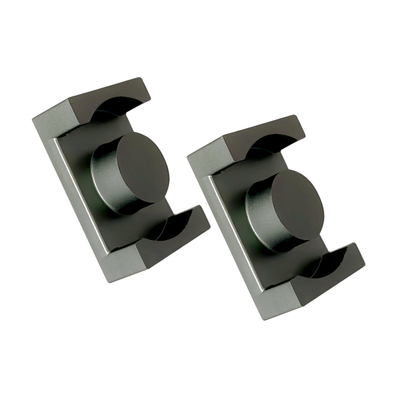

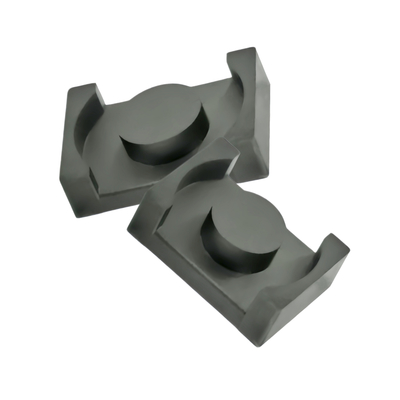

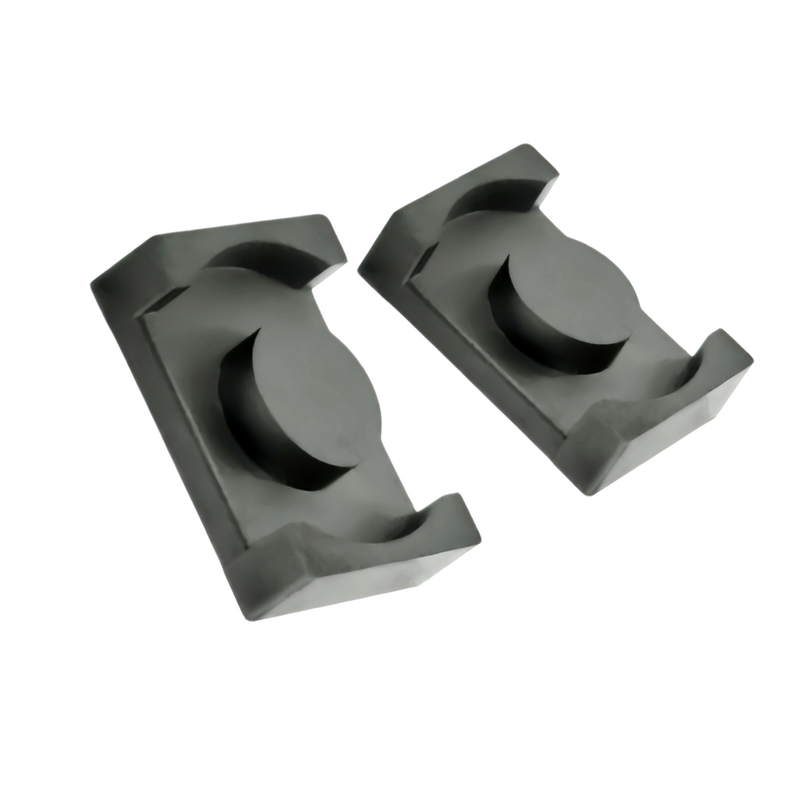

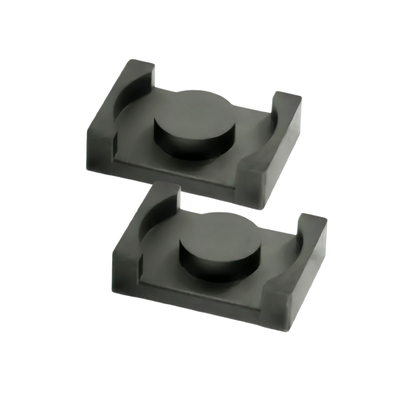

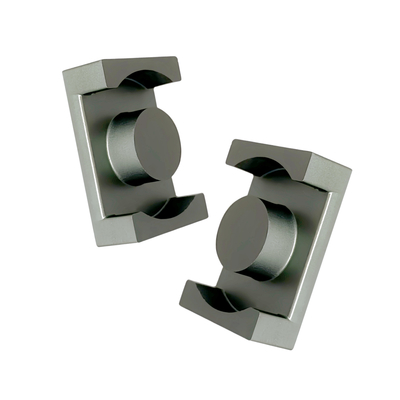

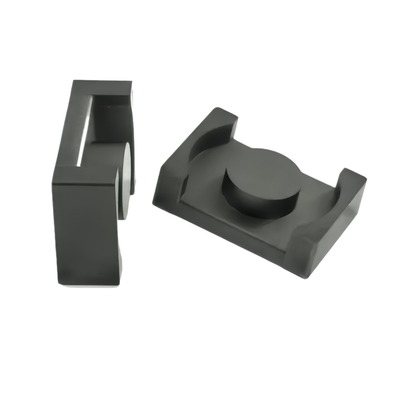

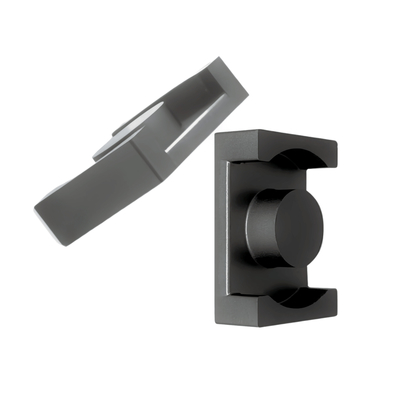

FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core

FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core

    • FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core
  • FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: EQI161510

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.1-1
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description



    Advantages:

    1. High Magnetic Permeability: Metal powder cores (e.g., iron powder, nickel powder, iron-nickel alloy powder) are treated with insulating coatings, maintaining high magnetic permeability at high frequencies, making them suitable for high-frequency circuits.

    2. Low Loss: The insulation between powder particles reduces eddy current losses (especially noticeable at high frequencies), making them ideal for high-frequency applications.

    3. Good DC Bias Characteristics: Metal powder cores are less prone to saturation under DC bias fields, suitable for applications requiring resistance to DC offset (e.g., power inductors, filters).

    4. Temperature Stability: The magnetic permeability of metal powder cores changes minimally with temperature, making them suitable for high-temperature or wide-temperature environments.

    5. Easy Mechanical Processing: They can be shaped into complex forms through pressing and molding, adapting to various design requirements.

    6. High Resistivity: The insulating coating layer reduces eddy current effects, improving high-frequency efficiency.



    Application Fields:

    1. Power Electronics: Energy storage inductors and filter inductors in switching power supplies (SMPS).
      High-frequency inductors in inverters and frequency converters.

    2. Communication Equipment: High-frequency transformers, RF (radio frequency) filters, signal isolation inductors.
      Power conversion and signal processing components in 5G communication base stations.

    3. Automotive Electronics: Inductors for on-board chargers (OBC) and DC-DC converters.
      Filter elements in battery management systems (BMS).

    4. New Energy Field: High-frequency inductors in photovoltaic inverters and wind power converters.
      Power magnetic components in electric vehicle charging piles.

    5. Industrial and Consumer Electronics: Inductors in LED driver power supplies and adapters.
      Anti-interference filters in audio equipment and motor drives.

    6. Military and Aerospace: Magnetic components in high-frequency communication equipment and radar systems.

                                                            FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core

                      FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core        FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core          FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core        FeSiAl Alloy Core Type EQI161510 Series Parameters Silicon Steel Transformer Core

                                    1                                    2                                  3                                     4



    Type Dimensions of E core Dimensions of I sheet example
    A B C D E F G A1 B1 C1
    EQI161510 16.3±0.2 15.0±0.2 6.8±0.2 7.3±0.2 14.5±0.2 4.0±0.3 6.90min 16.3±0.2 15.0±0.2 2.7±0.2 1
    EQI201408 20.50.3 14.0±0.2 5.1±0.2 8.8±0.2 18.0±0.3 2.7±0.3 12.8min 20.5±0.3 14.0±0.2 2.4±0.2 2
    EQI201412 20.5±0.3 14.0±0.2 9.6±0.2 8.8±0.2 18.0±0.3 7.2±0.3 12.8min 20.5±0.3 14.0±0.2 2.4±0.2 2
    EQI292510 29.3±0.4 25.0±0.3 7.4±0.2 14.0±0.2 26.3±0.4 5.0±0.3 20.6min 29.0±0.4 28.4±0.4 2.3±0.2 3
    EQI383510 37.5±0.5 35.0±0.5 8.0±0.2 15.3±0.2 32.4±0.5 5.7±0.3 28.0min 37.5±0.5 36.9±0.5 2.3±0.2 4





                                                                                    AL Value & Efective Parameters of EQI-Cores

    Type

    Le

    (mm)

    Ae

    (mm2)

    Ve

    (mm3)

    AL(nH/N2)
    26 40 60
    EQI161510-060-XXX 26.16 41.85 1639 53 80 121
    EQI201408-060-XXX 28.68 60.82 1867 69 107 160
    EQI201412-060-XXX 37.65 60.82 2417 53 81 122
    EQI292510-060-XXX 41.57 153.94 5322 121 186 279
    EQI383510-060-XXX 49.2 183.85 8540 122 188 282
