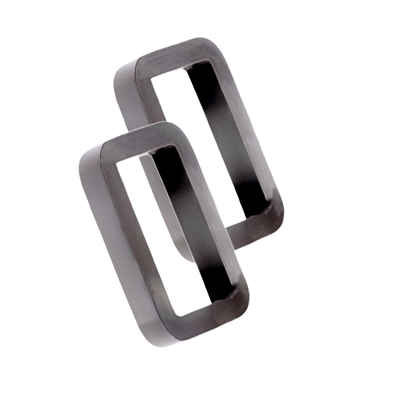

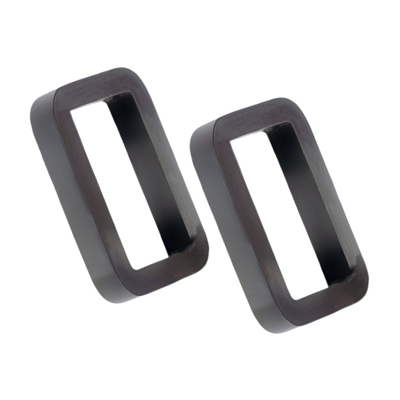

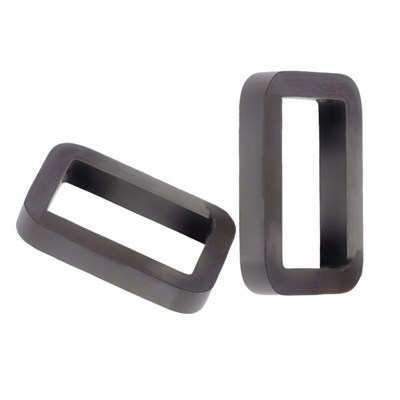

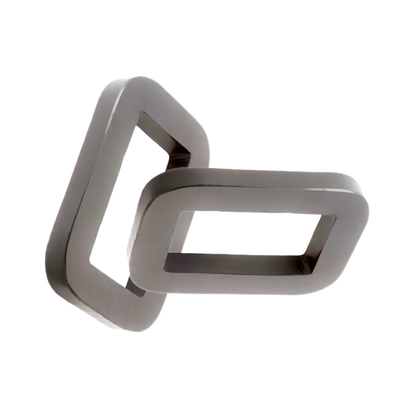

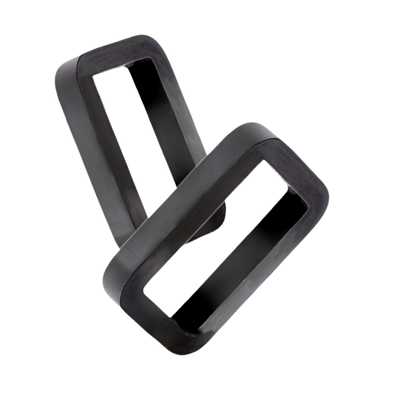

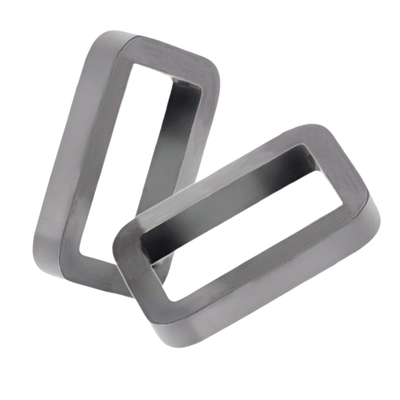

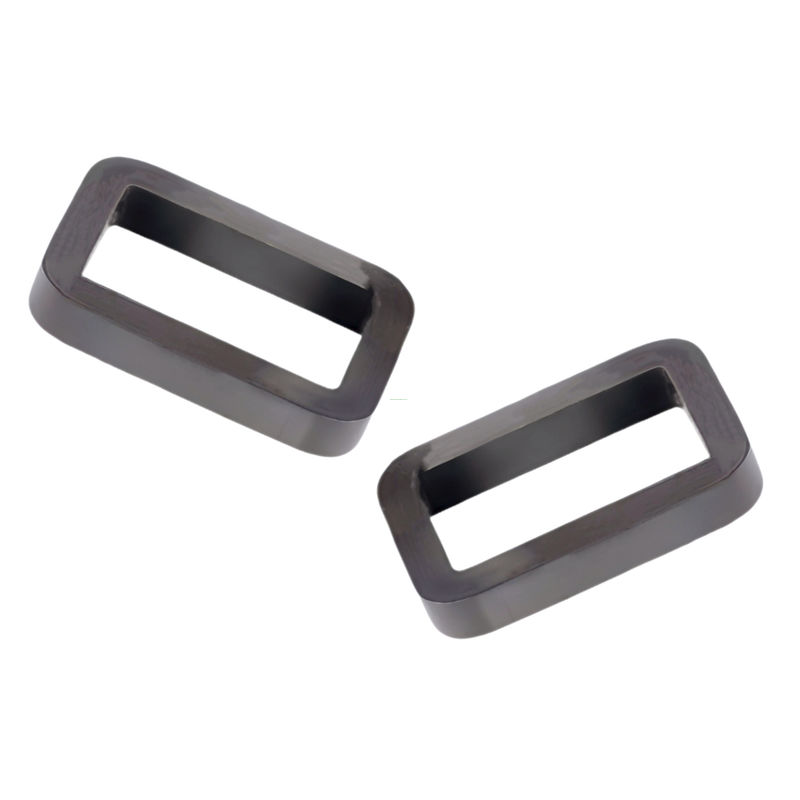

FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core

FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core

    • FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core
    • FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core
  • FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: K503009

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 6.5-7.5
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

                        FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core                                 FeSiAl Alloy Core Type K503009 Series Parameters Silicon Steel Transformer Core

     Type Dimension(mm)
      A B C D E
    K503009-060-XXX 30.3±0.3 50.0±0.3 20.0±0.3 42.0±0.3 9.0±0.3



    I. Advantages of K-Type Metal Powder Core

    1. High Permeability:It exhibits high permeability in the low-frequency range, effectively enhancing the magnetic performance of inductive components. Suitable for applications requiring high magnetic flux density.

    2. Low Loss:In low-frequency conditions, it has low eddy current loss and hysteresis loss, resulting in high energy conversion efficiency. Ideal for power inductors, filters, and other equipment with high efficiency requirements.

    3. Good Temperature Stability:The permeability changes minimally with temperature, maintaining stable magnetic properties over a wide temperature range. Suitable for high-temperature or environments with significant temperature fluctuations.

    4. Strong Saturation Resistance:It is less prone to saturation under high magnetic flux density, making it suitable for high-current or high-magnetic-field-strength applications.

    5. Excellent Machinability:The metal powder core material can be easily processed into various shapes (such as toroidal, E-shaped, U-shaped, etc.), adapting to different design requirements.

    6. Low Cost:Compared to other soft magnetic materials (such as ferrite or amorphous alloys), metal powder cores have lower costs, making them suitable for large-scale production.

    II. Application Fields of K-Type Metal Powder Core

    1. Power Electronics

      Switching Power Supplies: Used in high-frequency transformers, filter inductors, etc., to improve energy conversion efficiency.                                                                                                           Inverters: Applied in photovoltaic (PV) inverters, energy storage systems, etc., to reduce losses and enhance performance.                                                                                                                     Motor Drives: Used in frequency converters, servo motors, etc., to reduce temperature rise and noise.
    2. Communication and Signal Processing

      Filters: Utilized for power filtering, signal filtering, etc., to suppress electromagnetic interference (EMI).                                                                                                                                                    Common Mode Chokes: Used in communication equipment to suppress common mode noise and improve signal quality.
    3. Automotive Electronics

      Onboard Chargers: Applied in electric vehicle charging piles and onboard power management systems.                                                                                                                                                Sensors: Used in position sensors, speed sensors, etc., to enhance sensitivity and stability.
    4. Industrial Power and Lighting

      LED Driver Power Supplies: Used in constant current drive circuits to improve power efficiency and lifespan.                                                                                                                                            Industrial Inverters: Applied in industrial equipment power supplies to reduce harmonics and losses.
    5. Consumer Electronics

      Mobile Phone Chargers: Used in compact, high-efficiency charging modules.                                      Audio Equipment: Applied in inductors, transformers, etc., to improve sound quality and performance.
    6. New Energy Field

      Photovoltaic Systems: Used in inductive components of PV inverters to optimize energy conversion.Energy Storage Systems: Applied in inductive filtering within battery management systems (BMS).
