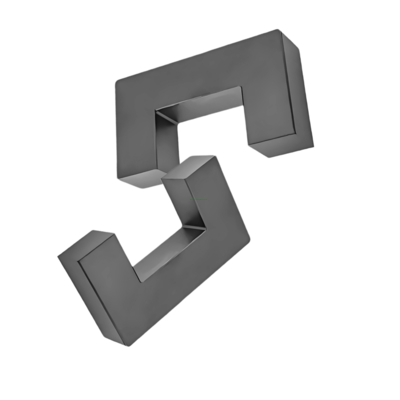

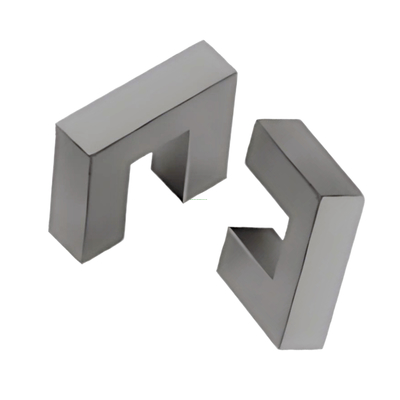

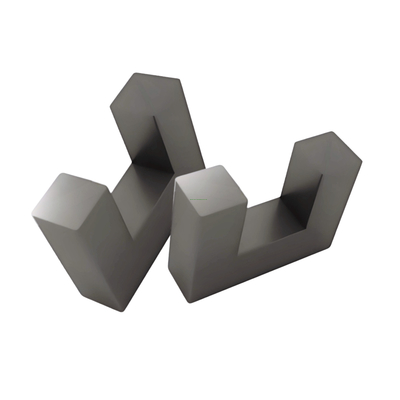

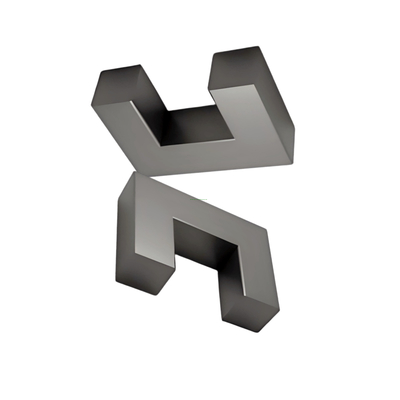

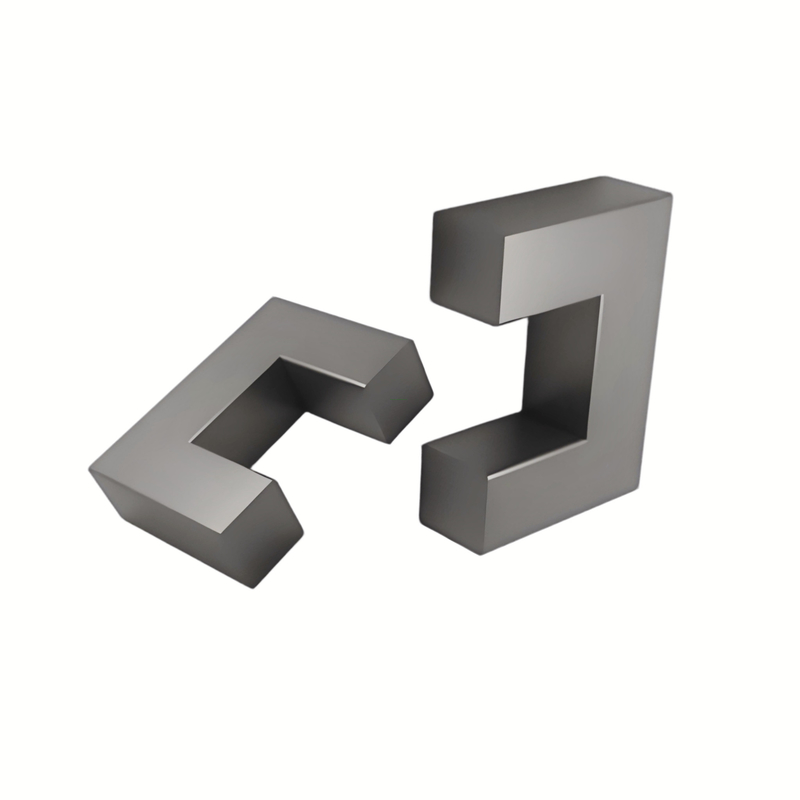

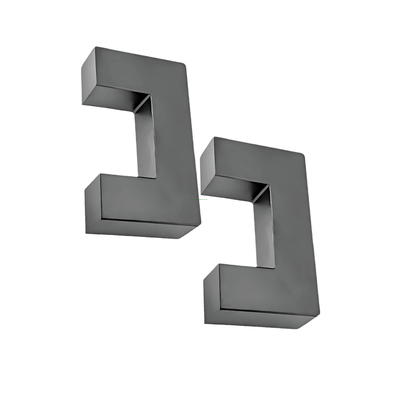

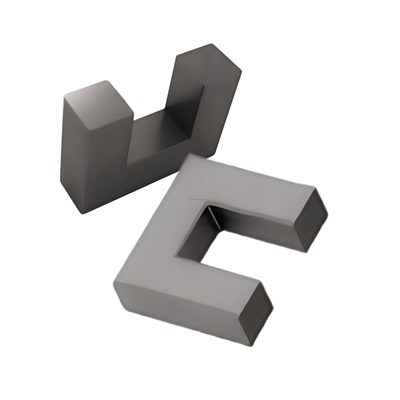

Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core

Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core

    • Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core
    • Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core
    • Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core
    • Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core
    • Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core
    • Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core
    • Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core
  • Hi-Flux KooL Mu Core Type UU55*49*23 Series Parameters silicon steel transformer core

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: UU55*49*23

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.1-1
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Advantages

    1. High Saturation Magnetic Flux Density
      The saturation magnetic induction strength far exceeds that of ferrite soft magnetic materials. For example, iron powder cores can reach 1500 mT, iron-silicon-aluminum magnetic powder cores achieve 1050 mT, and high-flux magnetic powder cores reach 1300 mT. This characteristic prevents saturation in high-magnetic-field environments, making it suitable for high-power applications.

    2. Excellent High-Frequency Performance
      Due to the insulation of metal powders by dielectric layers, eddy current losses are significantly reduced, making it suitable for medium-to-high-frequency ranges (1 kHz to MHz+). For instance, carbonyl iron powder cores perform exceptionally in high-frequency switching circuits and exhibit superior DC bias characteristics.

    3. Low Loss and Frequency Stability
      Low loss and good frequency stability enable consistent performance across wide frequency ranges, particularly in dynamic scenarios like switching power supplies and inverters.

    4. Stability Under AC/DC Superposition
      In applications with combined AC/DC fields (e.g., photovoltaic inverters, variable-frequency air conditioners), it effectively avoids permeability degradation, ensuring stable inductor performance.

    5. Strong Magnetic Property Controllability
      By adjusting production processes (e.g., particle size, insulation layer thickness), cores with customized permeability and loss characteristics can be produced to meet diverse needs.

    6. Temperature Stability and Reliability
      Performance remains nearly unchanged after aging treatment, and recycled cores can be refurbished, ensuring long-term magnetic stability.

    Application Fields

    1. New Energy

      • Photovoltaic Inverters: Used in Boost step-up inductors and AC inversion inductors to enhance energy conversion efficiency.
      • Energy Storage Systems: Applied in storage inductors and filters to support high-current charging/discharging.
      • New Energy Vehicles: Employed in onboard chargers and DC-DC converters, resistant to high vibration and temperature environments.
    2. Power Electronics and Communications

      • Variable-Frequency Air Conditioners: Core material for high-frequency onboard PFC inductors, improving energy efficiency and reducing harmonic interference.
      • 5G Communication Equipment: Used in filters and resonant inductors to meet low-loss, high-frequency demands.
      • Server Power Supplies: Critical for power factor correction (PFC) inductors and filter inductors to ensure stable power delivery.
    3. Industrial and Consumer Electronics

      • Switching Power Supplies: Suitable for filter inductors and chokes in compact designs.
      • Household Appliances: EMI filters in microwave ovens, refrigerators, etc., to improve electromagnetic compatibility.
      • LED Drivers: High-frequency, low-loss properties ideal for high-frequency lighting driver circuits.
    4. Defense and Advanced Technology

      • Radar and Communication Devices: High-permeability materials for miniaturized filters and antenna coupling components.
      • Aerospace: Heat-resistant and radiation-resistant properties suited for aerospace precision instruments.





    Part Number A B C D E
    mm mm mm mm mm
    UU20*16*18-XXX 20.5 16.5 18.4 7.9 9.9
    UU32*20*20-XXX 32.0 20.0 20.0 13.0 14.5
    UU55*49*23-XXX 55.3 49.0 23.2 20.0 31.5
    UU62*26*32-XXX 62.0 26.0 32.0 48.0 19.0
