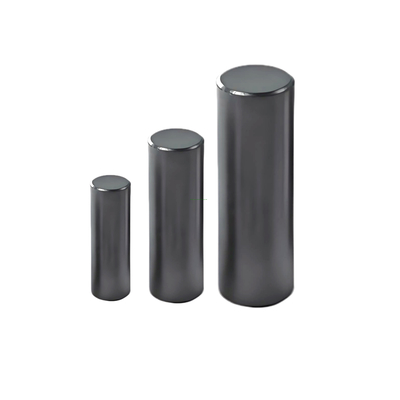

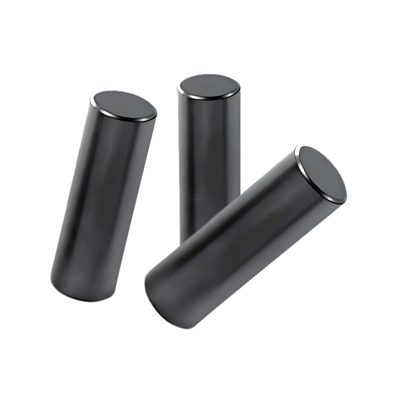

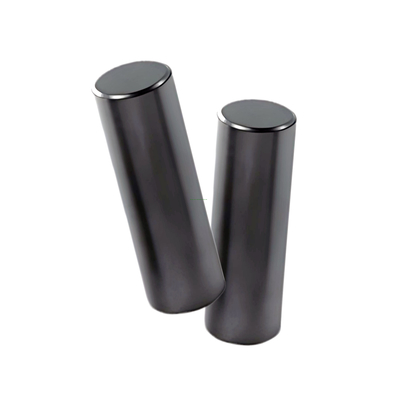

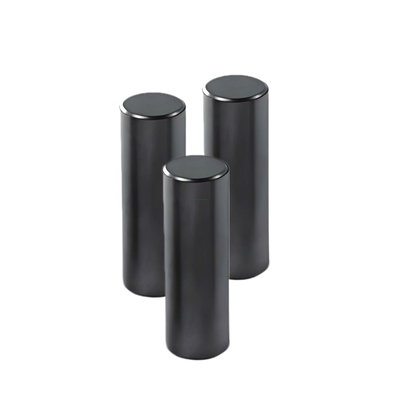

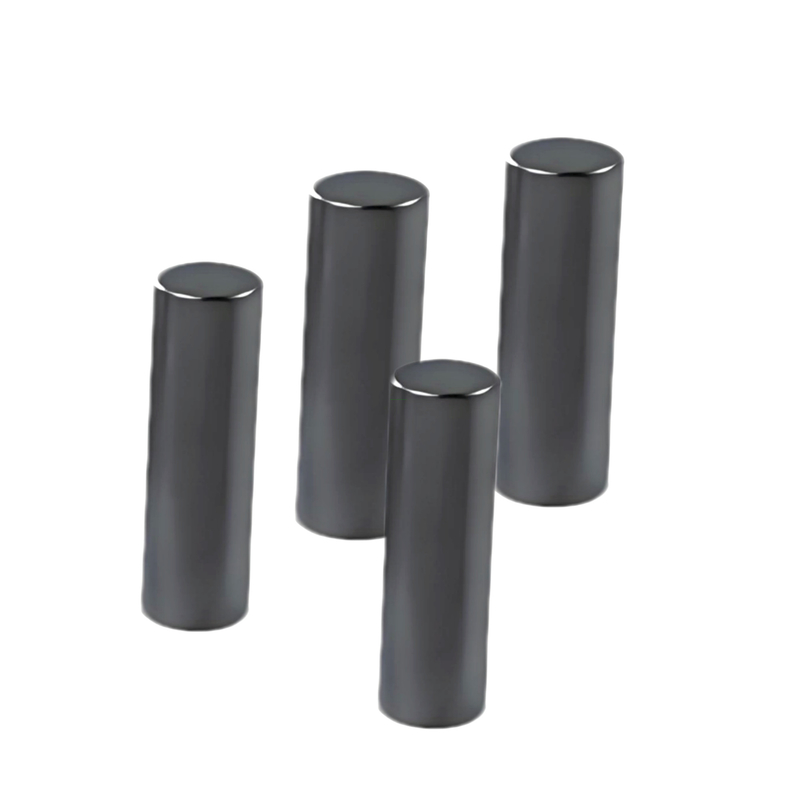

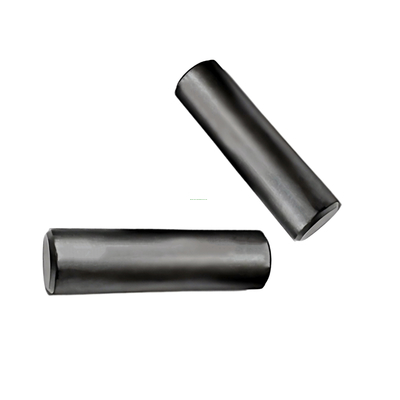

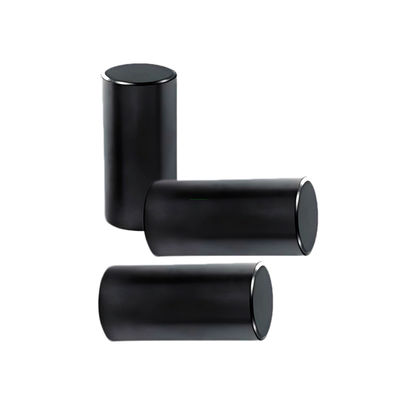

Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters

Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters

    • Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters
    • Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters
    • Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters
    • Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters
    • Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters
    • Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters
    • Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters
  • Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: P61E13-060

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.008-0.2
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters              Hi-Flux KooL Mu Core Type P61E13-060 Series Parameters

    TypeDimension﹙mm﹚
     AB
    P15E25-060-xxx15.0±0.325.0±0.3
    P16E15-060-xxx16.3±0.315.0±0.3
    P20E30-060-xxx20.0±0.330.0±0.3
    P21E25-060-xxx21.0±0.325.0±0.3
    P25E25-060-xxx25.0±0.325.0±0.3
    P28E25-060-xxx28.0±0.325.0±0.3
    P30E25-060-xxx30.0±0.325.0±0.3
    P33E25-060-xxx33.0±0.325.0±0.3
    P40E20-060-xxx40.0±0.420.0±0.3
    P51E18-060-xxx51.0±0.518.0±0.3
    P61E13-060-xxx61.0±0.513.0±0.3
    P78E10-060-xxx78.0±0.610.0±0.3
    P84E10-060-xxx84.0±0.610.0±0.3



    Advantages:

    1. High Saturation Magnetic Inductive Strength: P-shaped metal powder magnets possess a high saturation magnetic flux density, meaning they can withstand higher magnetic flux in a magnetic field without easily saturating. This characteristic makes P-shaped metal powder magnets excel in applications requiring high magnetic flux density.

    2. High Effective Permeability: P-shaped metal powder magnets have a high effective permeability, which helps improve the efficiency of inductive components. A high permeability means that under the same magnetic flux, P-shaped metal powder magnets require less excitation current, thereby reducing energy consumption.

    3. Low Losses: Due to their special production process, P-shaped metal powder magnets have lower losses. This allows them to maintain lower energy losses in high-frequency applications, enhancing the overall efficiency of the system.

    4. Good Temperature Stability: P-shaped metal powder magnets can maintain stable magnetic properties within a temperature range, which is particularly important for electronic devices that need to operate over a wide temperature range.

    5. Controllable Performance: By controlling and altering the production process and technical conditions, P-shaped metal powder magnets with unique properties can be manufactured to meet the needs of various special applications. This controllability provides greater flexibility for the design and manufacturing of electronic products.

    Application Areas:

    1. Inductive Components: P-shaped metal powder magnets are widely used in inductive components due to their excellent soft magnetic properties. These inductive components play a core supporting role in the field of power electronics technology, used for inverters (DC to AC), choppers (DC to DC), frequency converters (changing supply frequency), as well as switches and smart controls.

    2. Transformers: P-shaped metal powder magnets are also commonly used in transformers to enhance efficiency and performance. Especially in high-frequency transformers, the low loss and high permeability characteristics of P-shaped metal powder magnets make them an ideal choice.

    3. Other Fields: Besides inductive components and transformers, P-shaped metal powder magnets are also applied in filters, sensors, energy storage devices, and many other fields. With the advancement of technology and industry development, the application areas of P-shaped metal powder magnets continue to expand.
