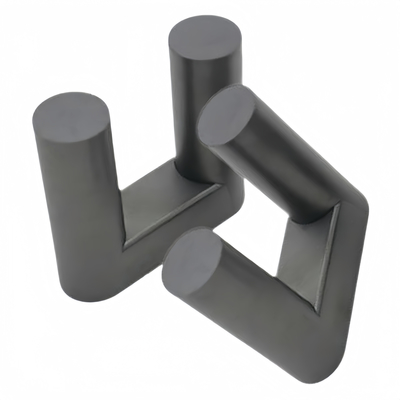

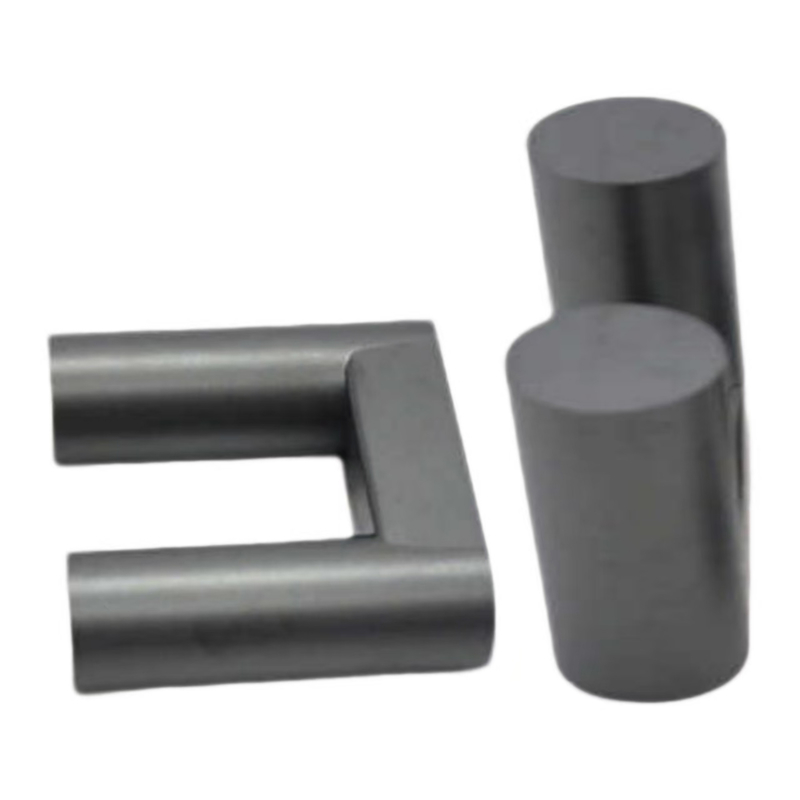

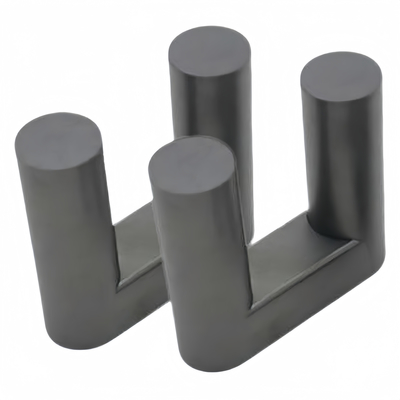

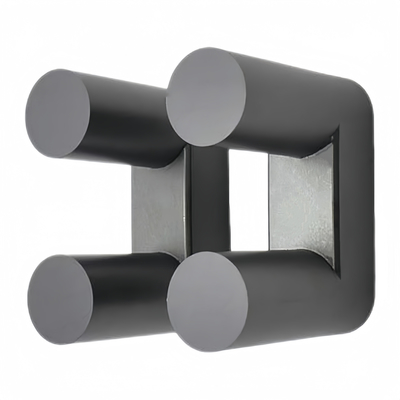

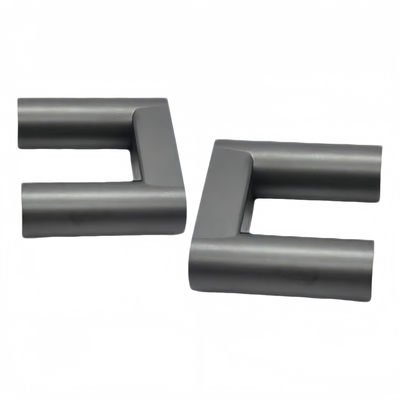

High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores

High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores

    • High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores
    • High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores
    • High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores
    • High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores
    • High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores
  • High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: UR552034

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.1-1.5
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores    High-frequency and Low-loss UR552034 Series Parameters Mn-Zn Ferrite Cores

                                                                                  Physical Dimensions

    Par Number

    AL

    (nH/N2)

    Ae

    (mm²)

    Le

    (mm)

    Ve

    (mm³)

    A

    mm

    B

    mm

    C

    mm

    D

    mm

    E

    mm

    UR552034-060-XXX 148.0 345.0 151.3 57390.0 55.0 34.0 20.0 19.0 40.0



    Advantages

    1. high saturation magnetization: Metal soft magnetic powder cores possess a high saturation magnetic induction intensity, meaning they can store more magnetic energy within a smaller volume. This is of great significance for achieving designs with large capacity and compact size.

    2. high effective permeability: The effective permeability of metal soft magnetic powder cores is relatively high, which helps to improve the efficiency and performance of inductive components.

    3. good magnetic performance stability: The magnetic properties of metal soft magnetic powder cores change little under different frequencies, temperatures, and time conditions, exhibiting good stability.

    4. low loss: The loss of metal soft magnetic powder cores is low, guaranteed by their special production process. This characteristic has important practical significance under various usage scenarios.

    5. good DC bias field stability: Metal soft magnetic powder cores have good DC bias field stability, enabling them to maintain stable performance in practical applications.

    6. performance controllability: By controlling and altering the production process and technological conditions, it is possible to obtain metal soft magnetic powder core materials that meet the requirements of various special application occasions.

    application fields

    1. photovoltaic field: Metal soft magnetic powder cores play a significant role in the photovoltaic field, meeting the demands of high frequency and high power operations, and effectively enhancing the power generation efficiency of photovoltaic systems.

    2. energy storage field: In the energy storage field, metal soft magnetic powder cores also play an important role, providing efficient magnetic support, reducing energy consumption, and improving the reliability of energy storage systems.

    3. new energy vehicle field: Metal soft magnetic powder cores are an important component in new energy vehicles, capable of meeting the demands of high frequency and high power operations, helping to reduce energy consumption and extend cruising range.

    4. other fields: In addition to the above fields, metal soft magnetic powder cores are also widely used in variable frequency air conditioning, 5G communication, power supplies, radars, servers, and other fields.
