PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core

PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core

    • PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core
    • PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core
    • PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core
    • PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core
    • PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core
    • PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core
    • PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core
  • PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: PQ513225

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.008-0.2
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

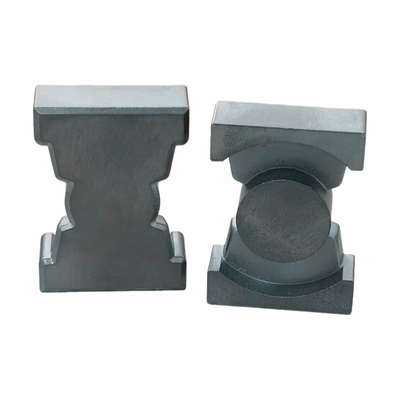

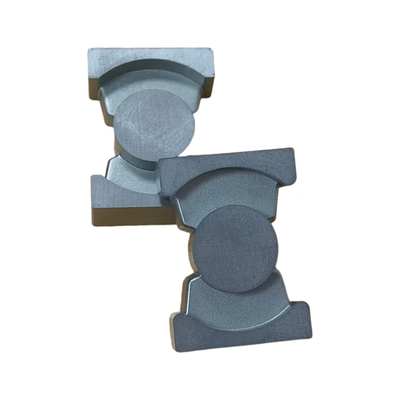

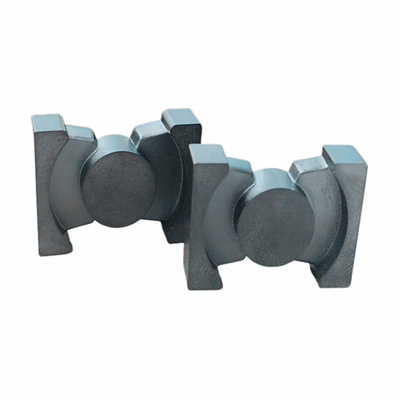

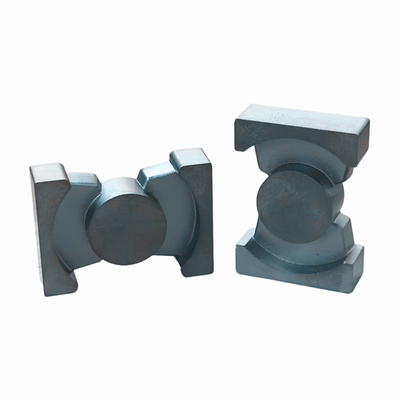

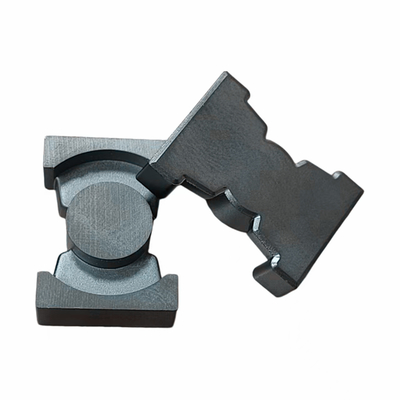

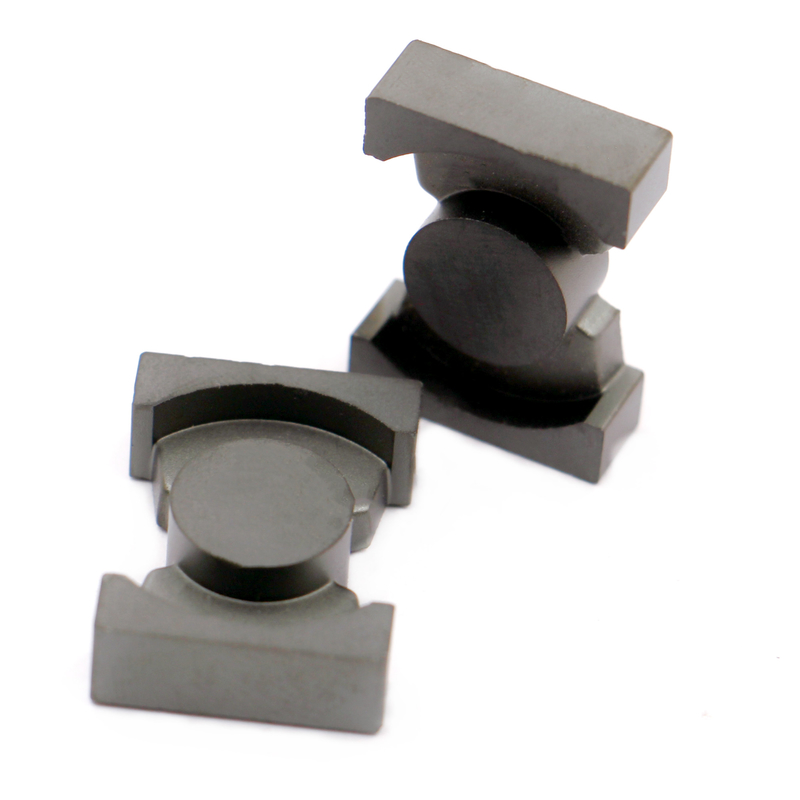

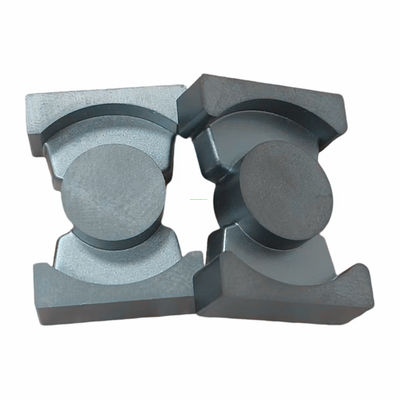

    PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core                   PQ513225 Shaped Metal Powder Magnet Mn-Zn ferrite Core

    Type Dimension﹙mm﹚
    A B C D E F G
    PQ513225-060-XXX 51.0±0.7 32.0±0.5 25.0±0.4 20.1±0.3 44.0±0.5 18.0±0.4 340min

                                                                 AL Value & Efective Parameters of PQ-Cores

    Type

    Le

    (mm)

    Ae

    (mm2)

    Ve

    (mm3)

     AL(nH/N2)
    26 40 60
    PQ513225-060-XXX 117.29 264.05 30970 73 113 170

    Advantages

    1. High Saturation Magnetic Induction Intensity: PQ-shaped metal powder magnets have a high saturation magnetic induction intensity, meaning they can store more magnetic energy in a smaller volume and weight, thereby providing a stronger magnetic field output.

    2. Low Loss: Due to their unique material structure and manufacturing process, PQ-shaped metal powder magnets exhibit lower losses in high-frequency applications, which helps improve the efficiency and performance of devices.

    3. Good Temperature Stability: PQ-shaped metal powder magnets maintain relatively stable magnetic properties at different temperatures, making them reliable in various environmental conditions.

    4. Excellent Anti-interference Ability: PQ-shaped metal powder magnets have good anti-interference capabilities and can resist interference from external magnetic fields, maintaining the stability and accuracy of the magnetic field.

    5. Shape Flexibility: The PQ shape design allows for more winding area, making wiring more convenient and also aiding in heat dissipation. This flexibility in shape makes PQ-shaped metal powder magnets suitable for a variety of application scenarios.

    Application Fields

    1. Power Conversion: In AC-DC or DC-DC power converters, PQ-shaped metal powder magnets can be used in key components such as main transformers and drive transformers to achieve efficient electric energy conversion.

    2. Energy Storage Systems: In solar, wind, and other renewable energy generation systems, PQ-shaped metal powder magnets can serve as the core material for energy storage inductors, helping to regulate current and voltage while storing excess electrical energy.

    3. Electric Vehicles: With the rapid development of electric vehicles, the demand for high-performance magnetic materials is increasing. Due to their high saturation magnetic induction intensity, low loss, and good temperature stability, PQ-shaped metal powder magnets have broad application prospects in the drive motors and charging piles of electric vehicles.

    4. Industrial Automation and Robotics: In industrial automation control systems and robotics, PQ-shaped metal powder magnets can be used to manufacture high-precision sensors and actuators, such as position sensors and speed sensors, improving the system's response speed and control precision.

    Contact Details
    IKP Electronics Co., Ltd.

    Contact Person: 纵浩

    Tel: +860551-63745886

    Send your inquiry directly to us (0 / 3000)
