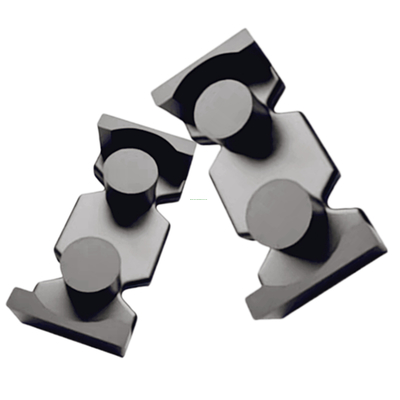

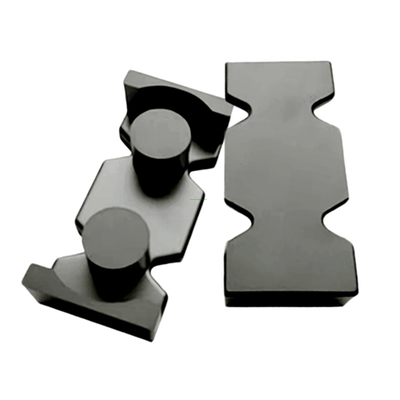

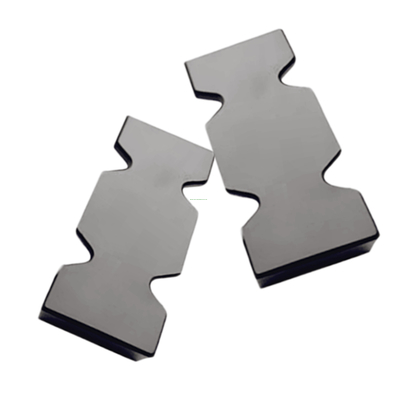

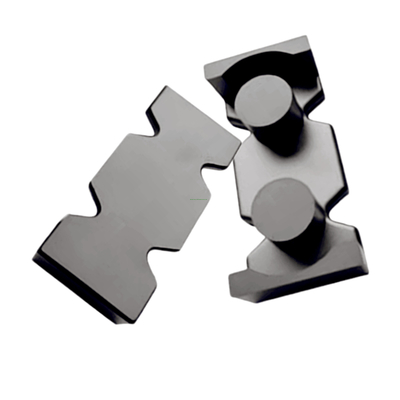

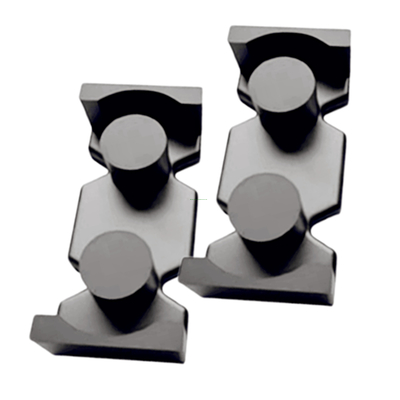

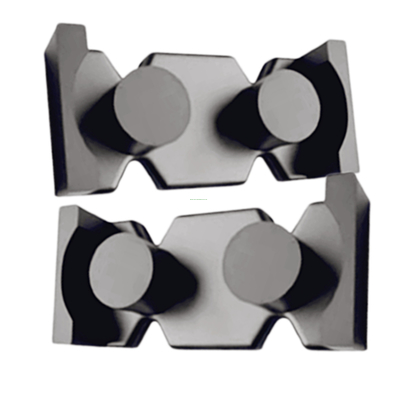

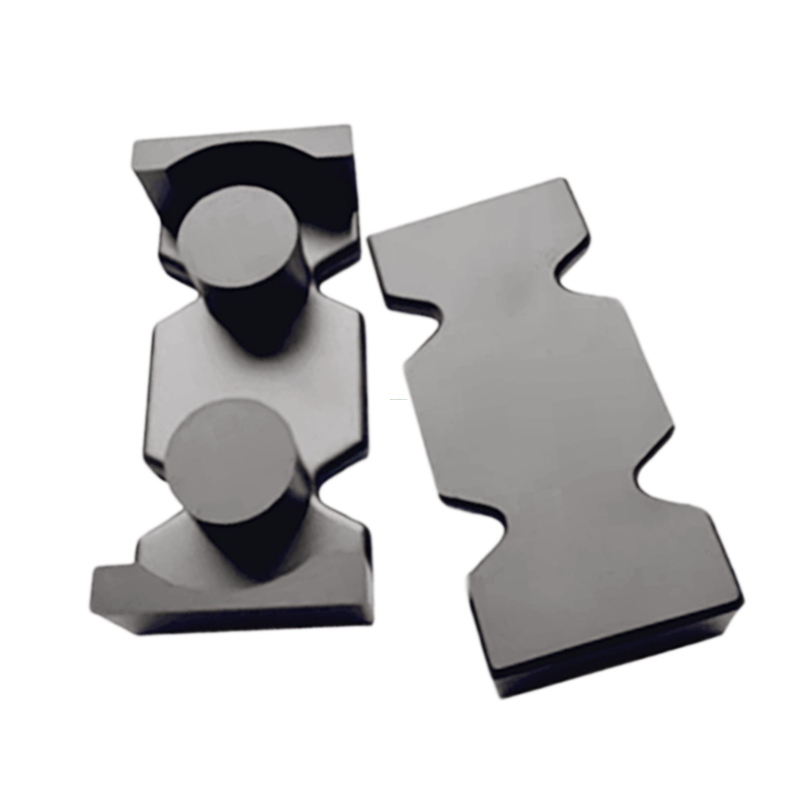

Mn-Zn Ferrite Soft Magnetic High Permeability EEC64A Core

Advantages

1. High Magnetic Permeability: EEC-type MnZn power cores have high magnetic permeability, which can effectively convert the conversion efficiency between electrical energy and magnetic energy.

2. Low Loss: In high-frequency applications, the loss of EEC-type MnZn power cores is relatively low, which helps to improve the efficiency of the equipment.

3. Good Temperature Stability: EEC-type MnZn power cores have good temperature stability and can maintain stable magnetic performance within a wide temperature range.

4. Good Frequency Characteristics: EEC-type MnZn power cores have good magnetic permeability and impedance characteristics over a wide frequency range, which can meet the requirements of electromagnetic signal processing at different frequencies.

5. Excellent Soft Magnetic Characteristics: EEC-type MnZn power cores belong to soft magnetic materials and can change their magnetization direction under the action of a small external magnetic field, thereby improving the energy conversion efficiency.

Application fields

1. Switching Power Supply: EEC-type MnZn power cores are commonly used in transformers, inductors, and other components in switching power supplies to achieve efficient transmission and conversion of electrical energy.

2. Filter Inductor: In filters, EEC-type MnZn power cores can be used to manufacture filter inductors to filter out noise in the power supply, improving the stability and quality of the power supply output.

3. Coil Retaining Ring: EEC-type MnZn power cores can be used as oil retaining rings to limit changes in current in the circuit, stabilizing the current.

4. Communication Equipment: In communication equipment such as mobile phones and base stations, EEC-type MnZn power cores can be used in RF chokes, power inductors, and other components to ensure stable signal transmission and normal operation of the equipment.

                                                                                                               Fig.1

Note:

The test conditions for the AL value are: 1KHz, 0.3V, and 10Ts..

The above are the standard specifications of our company, and we can design according to the special requirements of customers.
