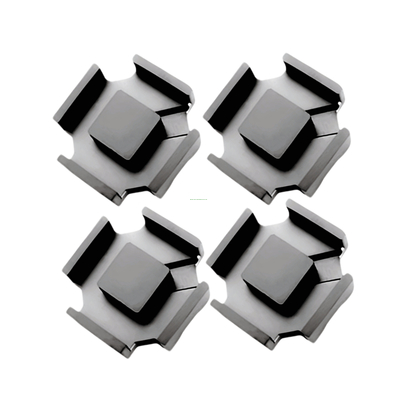

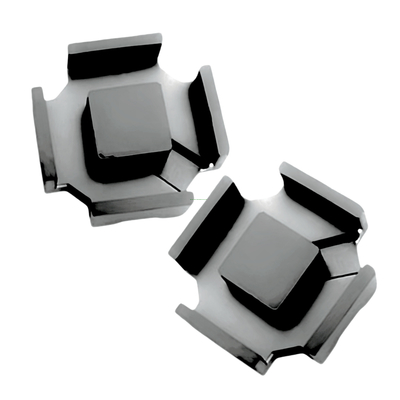

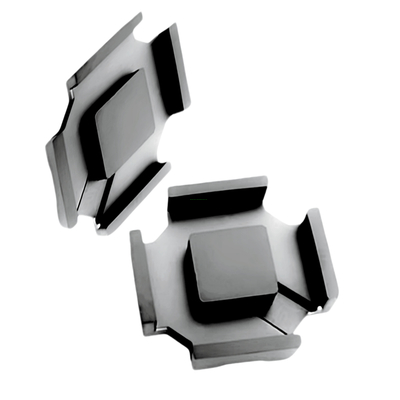

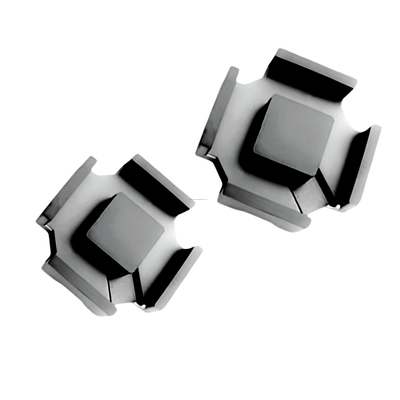

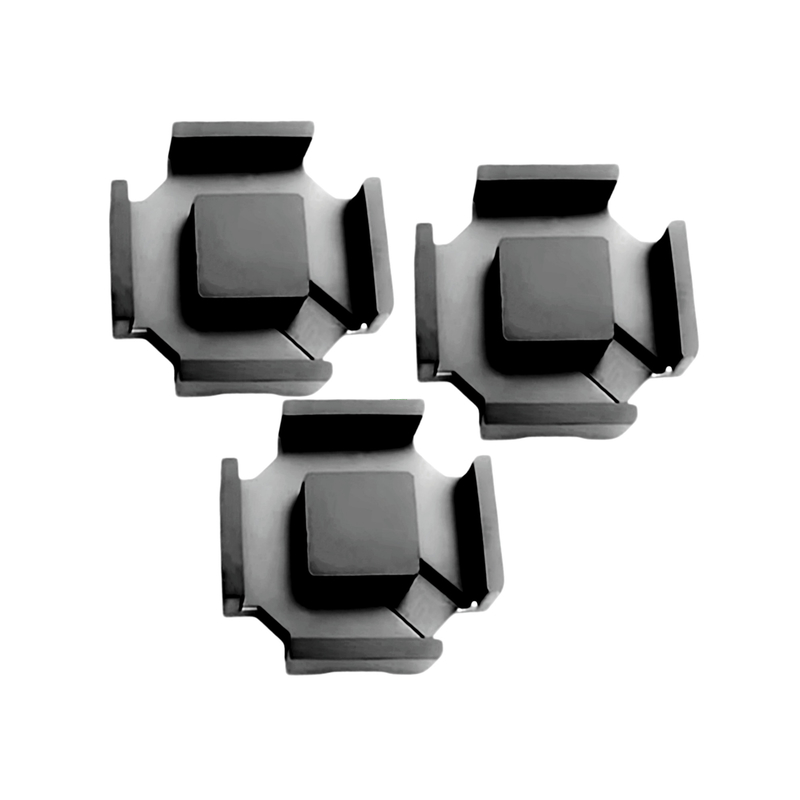

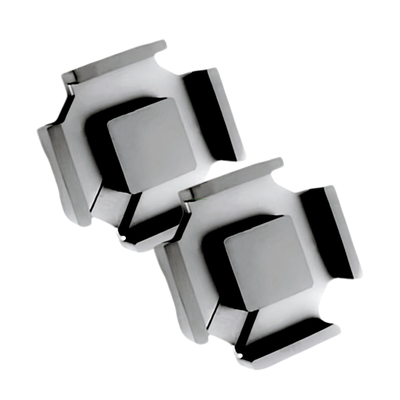

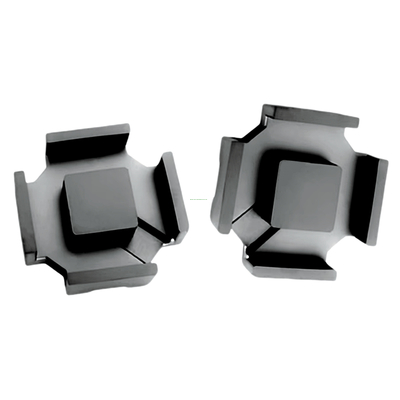

QP29/13 Type Mn Zn Soft Magnetic High Saturation Flux Power Core
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
IKP |
| Certification: |
CE/UL/REACH/ROHS |
| Model Number: |
QP29/13 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1000 |
| Price: |
0.014-0.016 |
| Packaging Details: |
Carton |
| Delivery Time: |
10-15 days |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
100,000/week |
Contact Now
Detailed Product Description
Advantages
-
High Saturation Magnetic Flux Density: QP-type manganese-zinc power magnetic strips have a high saturation magnetic flux density, allowing them to generate a strong magnetic field within a smaller volume. This is crucial for enhancing the performance and efficiency of electronic devices.
-
Low Loss: This type of magnetic strip experiences relatively low losses during energy conversion, enabling more effective use of electrical energy and reducing energy loss. This characteristic is significant for improving the energy efficiency ratio of devices and reducing operational costs.
-
Good Temperature Stability: Within a certain temperature range, QP-type manganese-zinc power magnetic strips exhibit good stability, maintaining consistent magnetic performance at different temperatures. This enables them to work reliably under various environmental conditions, enhancing the adaptability and reliability of the equipment.
-
High Curie Temperature: QP-type manganese-zinc power magnetic strips have a high Curie temperature (Curie point), meaning their magnetic properties are stable with changes in temperature. This allows them to maintain good magnetic performance in high-temperature environments, making them suitable for various high-temperature applications.
-
Moderate Mechanical Strength: These magnetic strips possess a certain level of mechanical strength, making them resistant to cracking or deformation and facilitating processing and installation. This improves their durability and reliability, reducing the risk of damage caused by mechanical stress.
Field of Application
-
Power Electronics Equipment: QP-type manganese-zinc power magnetic strips are widely used in components such as inductors and transformers within power electronics equipment. These components are indispensable parts of power electronics devices, responsible for functions like energy storage, conversion, and transmission.
-
High-Frequency Applications: Due to their excellent high-frequency electromagnetic characteristics, QP-type manganese-zinc power magnetic strips are also suitable for high-frequency application scenarios, such as high-frequency filters and pulse transformers. In these applications, they can provide stable high-frequency performance and lower losses.
-
Communication Equipment: QP-type manganese-zinc power magnetic strips are also used in components such as antennas and radio frequency devices in communication equipment. These components require high-performance magnetic materials to support their efficient signal transmission and processing capabilities.
Fig.1
| Specification |
Figure |
Dimension(mm) |
Effective parameter |
Inductor coefficient AL(nH/N2) |
Weight |
| A |
B |
C |
D |
E1 |
E2 |
F |
Ae(mm2) |
Le(mm) |
Ve(mm3) |
BP44 |
BP95 |
(grams/pair) |
| QP26/12 |
1 |
26.00±0.40 |
6.0±0.2 |
14.0+0.2/-0.3 |
10.50±0.2 |
21.50min |
19.20ref |
3.5±0.2 |
115.0 |
39.4 |
4531.00 |
7200±25% |
9500±25% |
21.80 |
| QP29/13 |
1 |
29.00±0.45 |
6.7±0.2 |
16.40±0.25 |
12.00±0.2 |
23.80min |
22.50ref |
3.6±0.2 |
155.0 |
49.4 |
7657.00 |
9200±25% |
12000±25% |
33.40 |
Note:
The test conditions for the AL value are: 1KHz, 0.3V, and 10Ts.
The above are the standard specifications of our company, and we can design according to the special requirements of customers.
