| Place of Origin: | CHINA |
| Brand Name: | IKP |
| Certification: | CE/UL/REACH/ROHS |
| Model Number: | UF34 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.05-1.95 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
Advantages:

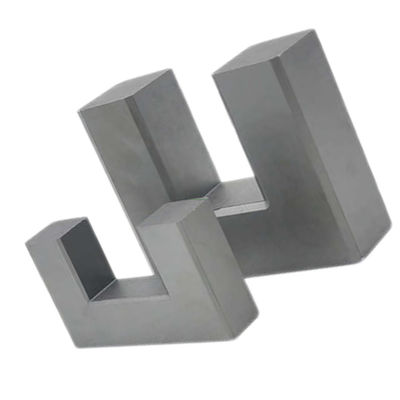

High Magnetic Permeability: The UU-type MnZn power ferrite core has a high initial permeability, which enables it to exhibit excellent inductive properties in the low-frequency range. This effectively converts low-frequency common-mode interference current into magnetic field energy for storage, thereby reducing the impact of interference signals on the circuit.
High Saturation Magnetic Induction Strength: Under high current conditions, the UU-type MnZn power ferrite core is less likely to enter a saturated state. This ensures that the core can maintain stable performance even when the circuit load varies significantly and the current fluctuates, continuously and effectively suppressing electromagnetic interference (EMI).
Good Temperature Stability: The UU-type MnZn power ferrite core has good stability within a certain temperature range and can maintain its performance in different working environments.
Low Loss: The loss of the UU-type MnZn power ferrite core is relatively low, meaning that it can reduce energy loss and heat caused by eddy currents during high-frequency operation, improving the work efficiency and stability of the core.
High Mechanical Strength: The UU-type MnZn power ferrite core typically has high mechanical strength and can withstand certain physical stress without being easily damaged.
Application Areas:
Power Filters: The UU-type MnZn power ferrite core is commonly used in power filters to suppress high-frequency noise and interference on power lines, enhancing the stability and reliability of the power supply.
Inductors: Due to its high magnetic permeability and low loss characteristics, the UU-type MnZn power ferrite core is also often used as the core material for inductors, serving functions such as energy storage, filtering, and impedance matching.
Transformers: The UU-type MnZn power ferrite core is widely used in small transformers, such as switching power supply transformers and pulse transformers.
EMI Suppression in Electronic Devices: In electronic products like computers, televisions, audio equipment, and digital communication devices, the UU-type MnZn power ferrite core is also used as an EMI suppression component to reduce electromagnetic radiation and interference.
Fig.1 Fig.2 Fig.3
| Specification | Figure | Dimension(mm) | Effective parameter | Inductor coefficient AL(nH/N2) | Weight | ||||||||
| A | B | C/C1/C2 | D | E | F/H | Ae(mm2) | Le(mm) | Ve(mm3) | BP44 | BP95 | (grams/pair) | ||
| UF13.8/10.8 | 1 | 13.80±0.30 | 5.40±0.20 | C=13.00±0.30 C1=11.00±0.15 | 4.50±0.15 | 4.80±0.30 | 3.40±0.15 | 48.7 | 28.6 | 1392.80 | 3100±25% | 4000±25% | 9.06 |
| UF18.6/10.6 | 1 | 18.60±0.20 | 5.30±0.20 | C=16.60±0.30 C1=11.05±0.25C2=3.0±0.15 | 5.9±0.20 | 6.80±0.30 | 3.25±0.15 | 63.9 | 35.5 | 2268.45 | 3250±25% | 4300±25% | 14.90 |
| UF34 | 2 | 34.0±0.50 | 29.0±0.40 | 20.0±0.30 | 12.0±0.30 | 10.0±0.30 | 18.0±0.30 | 232.00 | 127.99 | 29895.10 | 3900±25% | 6000±25% | 162.60 |
| UF38 | 3 | 38.0±0.50 | 32.0±0.30 | C=22.0±0.30 C1=18.0±0.30 | 12.0±0.30 | 14.0±0.30 | 23.0±0.30 | 195.00 | 151.00 | 29445.00 | 3300±25% | 5000±25% | 173.60 |
Note:
The test conditions for the AL value are: 1KHz, 0.3V, and 10Ts.
The above are the standard specifications of our company, and we can design according to the special requirements of customers.
