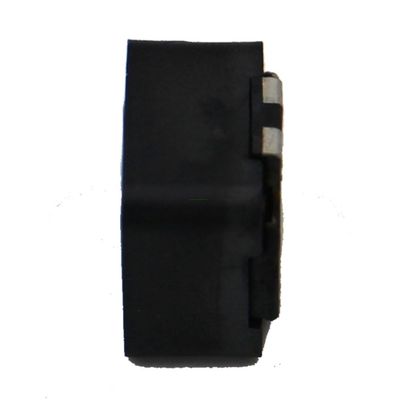

SMD Semi-Shielded Inductor Coupled Inductor Dual Winding Choke Inductor

Product Description

• Compact design
• High current, low DCR and high efficiency
• Very low acoustic noise and very low leakage flux noise
• High reliability
• 100% Lead (Pb)-free
• RoHS Directive-compliant
• Test frequency:
  • L: 100KHz/1.0V
  • All test data referenced to 25°C ambient
  • Testing instrument:
  • L: HP4284A, CH11025, CH3302, CH1320, CH1320S LCR meter/RDC: CH16502, Agilent 33420A micro ohmmeter
• Heat rated current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1 minute)
• Storage conditions
• To maintain the solderability of terminal electrodes:
  • TAIPAQ products meet IPC/JEDEC J-STD-020D standard-MSL, level 1
  • Temperature and humidity conditions: Less than 40°C and 60% RH
  • Recommended products should be used within 12 months form time of delivery
  • Packing material should be kept where no chlorine or sulfur exists in the air
  • Transportation
  • Products should be handled with care to avoid damage or contamination from perspiration and skin oils
  • Use of tweezers or vacuum pick up is strongly recommended for individual components
  • Bulk handling should ensure that abrasion and mechanical shock are minimized

IKP Design , Customer Design , OEM ODM service are available

Application of power inductor:
1. VTR
2. OA equipment
3. Digital camera
4. LCD TV set
5. Notebook PC
6. Partable communication equipments
7. DC/DC converters




Production Range


















Certifications

ISO9001 Certified

UL Certified

RoHs Certified

REACH Certified

GSG Certified

Our IKP Electronics is located at Hefei,China. We focus on manufacturing Power inductors and Power transformers for over twenty years. Our products are widely used in Automotive field,New Energy field, Power Conversion, Home Appliances, Computers, and LED Lighting. And our factories are established in 2004 and most of our products are certificated by ISO, RoHs and UL . The more important thing is that customer designs and OEM ODM service are absolutely available because we are manufacturer having the advantage of technology and price .

R&D

Our IKP is equipped with advanced manufacturing equipments and testing equipments as well as a R&D center to meet customer requirements. Besides, our company always adheres to the high quality innovation.



QC

In the process of production, the strict quality inspection standards and inspection technique are used in order to realize the total quality control management from the incoming inspection, process inspection, to the outgoing inspection.



Our main products:

You are welcome to send RFQs to us and best price will be quoted!
