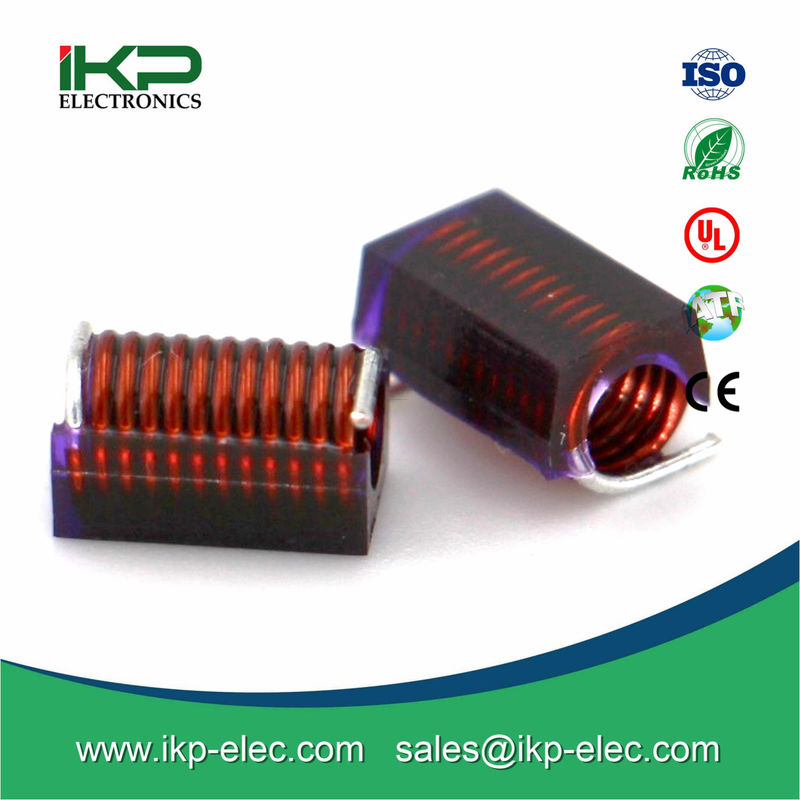

    SMD/SMT Series Flat Top Air Core Choke Coil Inductors



    SMD Flat Top Air Core Choke Coils / Inductors

    SMD Flat Top Air Core Choke is the best choice to replace the traditional spring coil , especially suitable for high-frequency terminal products. It has a stable inductance and the inductance fluctuation is very small. Even nH grade coils can be maintained within a 5% tolerance range. At the same time, the design of low DC impedance greatly reduces its loss and improves the output.



    IKP can provide custom design services and tighter tolerance requirements, including different inductance and Q values. It can perfectly match with high-frequency circuits and is the best choice for high-end product selection.



    FEATURES:

    • High Q value, high frequency

    • High resonance frequency

    • Good structure and easy to use

    • RoHS compliant and halogen free

    • The smallest can be 1.8mm * 1.4mm * 1.4mm

    • Package: tape and reel

    • SMT Automatic packaging

    • Accept customer's special specifications



    APPLICATIONS:

    Power amplifier, antenna module, oscillator, mobile network (GSM, CDMA, PDC, etc.), digital TV tuner, high-frequency communication equipment, wireless equipment and Bluetooth equipment.



    SMD/SMT Series Flat Top Air Core Choke Coil Inductors



    PHYSICAL AND ELECTRICAL PERFORMANCE PARAMETERS:

    Part No

    Inductance

    (nH)

    Quality Factor

    MIN

    Test Freq.

    (mHz)

    SRF

    (MHz) MIN

    DCR

    (mΩ)MAX

    Ts

    Rated Current

    (A)MAX

    SFAC-0403-2N5K 2.5 145 150 12500(ref) 1.1 1 4.0
    SFAC-0403-5N0K 5.0 140 150 6500(ref) 1.8 2 4.0
    SFAC-0403-8N0J 8.0 140 150 5000(ref) 2.6 3 4.0
    SFAC-0403-12N5J 12.5 137 150 3300(ref) 3.4 4 4.0
    SFAC-0403-18N5J 18.5 132 150 2500(ref) 3.9 5 4.0
    SFAC-0504-22NJ 22 100 150 3200(ref) 4.2 4 3.0
    SFAC-0504-27NJ 27 100 150 2700(ref) 4.0 5 3.5
    SFAC-0504-33NJ 33 100 150 2500(ref) 4.8 5 3.0
    SFAC-0504-39NJ 39 100 150 2100 4.4 6 3.0
    SFAC-0504-47NJ 47 100 150 2100 5.6 6 3.0
    SFAC-0504-56NJ 56 100 150 1500 6.2 7 3.0
    SFAC-0504-68NJ 68 100 150 1500 8.2 7 2.5
    SFAC-0504-82NJ 82 100 150 1300 9.4 8 2.5
    SFAC-0504-R10J 100 100 150 1200 12.3 9 1.7
    SFAC-0504-R12J 120 100 150 1100 17.3 9 1.5
    SFAC-0703-17N5J 17.5 100 150 2200 4.5 6 4.0
    SFAC-0703-22NJ 22.0 102 150 2100 5.2 7 4.0
    SFAC-0703-28NJ 28.0 105 150 1800 6.0 8 4.0
    SFAC-0703-33N5J 35.5 112 150 1500 6.8 9 4.0
    SFAC-0703-43NJ 43.0 106 150 1200 7.9 10 4.0
    SFAC-1006-90NJ 90 95 50 1140 15.0 9 3.5
    SFAC-1006-R111J 111 87 50 1020 15.0 10 3.5
    SFAC-1006-R130J 130 87 50 900 20.0 11 3.0
    SFAC-1006-R169J 169 95 50 875 25.0 12 3.0
    SFAC-1006-R206J 206 95 50 800 30.0 13 3.0
    SFAC-1006-R222J 222 92 50 730 35.0 14 3.0
    SFAC-1006-R246J 246 95 50 685 35.0 15 3.0
    SFAC-1006-R307J 307 95 50 660 35.0 16 3.0
    SFAC-1006-R380J 380 95 50 590 50.0 17 2.5
    SFAC-1006-R422J 422 95 50 540 60.0 18 2.5
    SFAC-1006-R491J 491 95 50 535 65.0 19 2.0
    SFAC-1006-R538J 538 87 50 490 90.0 20 2.0
