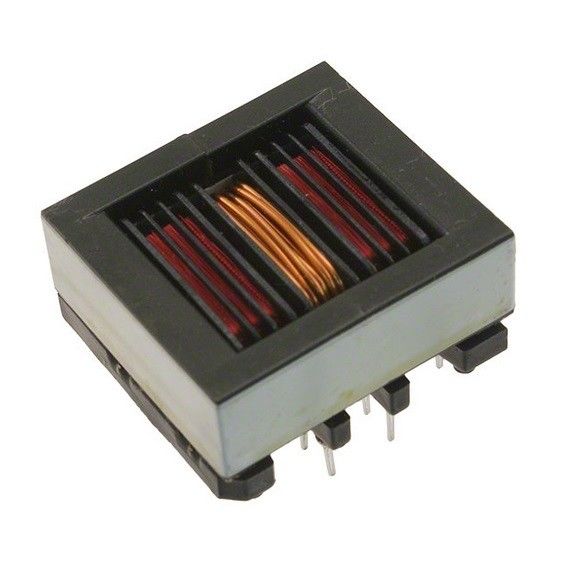

14W/15V SMD LCD/CCFL Driving Inverter Transformer

14W/15V SMD LCD/CCFL Driving Inverter Transformer

    • 14W/15V SMD LCD/CCFL Driving Inverter Transformer
    • 14W/15V SMD LCD/CCFL Driving Inverter Transformer
  • 14W/15V SMD LCD/CCFL Driving Inverter Transformer

    Product Details:

    Place of Origin: Mainland China
    Brand Name: IKP
    Certification: RoHs/CE/UL/SGS
    Model Number: IKP-CTX4108-1415

    Payment & Shipping Terms:

    Minimum Order Quantity: 500PCS
    Price: USD:4.0-8.0
    Packaging Details: CTN
    Delivery Time: 3-10 DAYS
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20,000PCS/WEEK
    Contact Now
    Detailed Product Description

    Description

    •Transformer for use in CCFL power supplies, available in through-hole and surface mount recess or gull wing versions, incorporating floating or fixed secondary technology

    •Supply output current up to 30 milli-Amps

    •Frequency range from 40 to 80 KHz

    •Deliver output power from 2.5 to 14 Watts

    •Operate in royer and other topologies

    •Ferrite core material

    Applications

    •CCFL power supplies

    Environmental Data

    •Storage temperature range: -40℃ to +85℃

    •Operating ambient temperature range: 0℃ to +70℃

    •Solder reflow temperature: +260℃max, for 10 seconds max

    Packaging

    •Supplied in bulk packaging



    Part Number

    Schematic

    Diagram

    Pout

    Walts

    Lp

    μH2

    DCRp

    Ohms Max

    DCRs

    Ohms Max

    TR

    Ns/Np

    Vpri

    Volts Max2

    Vsec

    Volt Max2

    Is Max

    A rms

    Vpri

    Abnormal2

    Vsec

    Abnormal2

    CTX410805-R

    E

    14

    24

    0.030

    262

    67

    20

    1340

    .030

    30

    2000

    CTX410807-R

    E

    14

    16

    0.024

    272

    86

    15

    1340

    .030

    23

    2000

    CTX410809-R

    E

    14

    16

    0.024

    314

    100

    13

    1340

    .030

    23

    2000
