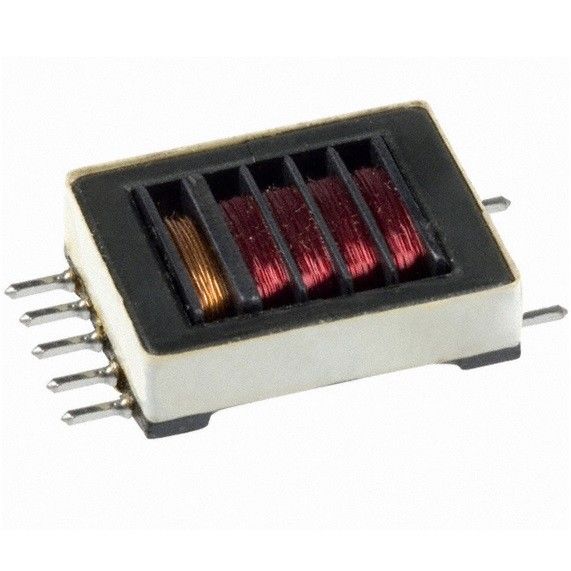

6W/15V SMD LCD/CCFL Driving Inverter Transformer

6W/15V SMD LCD/CCFL Driving Inverter Transformer

    • 6W/15V SMD LCD/CCFL Driving Inverter Transformer
    • 6W/15V SMD LCD/CCFL Driving Inverter Transformer
  • 6W/15V SMD LCD/CCFL Driving Inverter Transformer

    Product Details:

    Place of Origin: Mainland China
    Brand Name: IKP
    Certification: RoHs/CE/UL/SGS
    Model Number: IKP-CTX1106-6015

    Payment & Shipping Terms:

    Minimum Order Quantity: 500PCS
    Price: USD:2.0-8.0
    Packaging Details: CTN
    Delivery Time: 3-10 DAYS
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20,000PCS/WEEK
    Contact Now
    Detailed Product Description

    Description
    •Transformer for use in CCFL power supplies, available in through-hole and surface mount recess    or gull wing versions, incorporating floating or fixed secondary technology
    •Supply output current up to 30 milli-Amps
    •Frequency range from 40 to 80 KHz
    •Deliver output power: 6 Watts
    •Operate in royer and other topologies
    •Ferrite core material
    Applications
    •CCFL power supplies
    Environmental Data
    •Storage temperature range: -40℃ to +85℃
    •Operating ambient temperature range: 0℃ to +70℃
    •Solder reflow temperature: +260℃max, for 10 seconds max
    Packaging
    •Supplied in bulk packaging

    Part Number

    Schematic

    Diagram

    Pout

    Walts

    Lp

    μH2

    DCRp

    Ohms Max

    DCRs

    Ohms Max

    TR

    Ns/Np

    Vpri

    Volts Max2

    Vsec

    Volt Max2

    Is Max

    A rms

    Vpri

    Abnormal2

    Vsec

    Abnormal2

    CTX110600-R

    D

    6

    44

    0.160

    176

    67

    20

    1340

    .011

    30

    2000

    CTX110603-R

    C

    6

    44

    0.160

    132

    50

    26

    1340

    .011

    40

    2000

    CTX110605-R

    C

    6

    44

    0.160

    176

    67

    20

    1340

    .011

    30

    2000

    CTX110607-R

    C

    6

    27

    0.132

    176

    86

    15

    1340

    .011

    23

    2000

    CTX110609-R

    C

    6

    20

    0.132

    176

    100

    13

    1340

    .011

    23

    2000

    CTX110611-R

    C

    6

    20

    0.132

    291

    125

    11

    1340

    .011

    16

    2000

    CTX210600-R

    D

    6

    44

    0.160

    176

    67

    20

    1340

    .011

    30

    2000

    CTX210603-R

    C

    6

    44

    0.160

    132

    50

    26

    1340

    .011

    40

    2000

    CTX210605-R

    C

    6

    44

    0.160

    176

    67

    20

    1340

    .011

    30

    2000

    CTX210607-R

    C

    6

    27

    0.132

    176

    86

    15

    1340

    .011

    23

    2000

    CTX210609-R

    C

    6

    20

    0.132

    176

    100

    13

    1340

    .011

    23

    2000

    CTX210611-R

    C

    6

    20

    0.132

    291

    125

    11

    1340

    .011

    16

    2000
