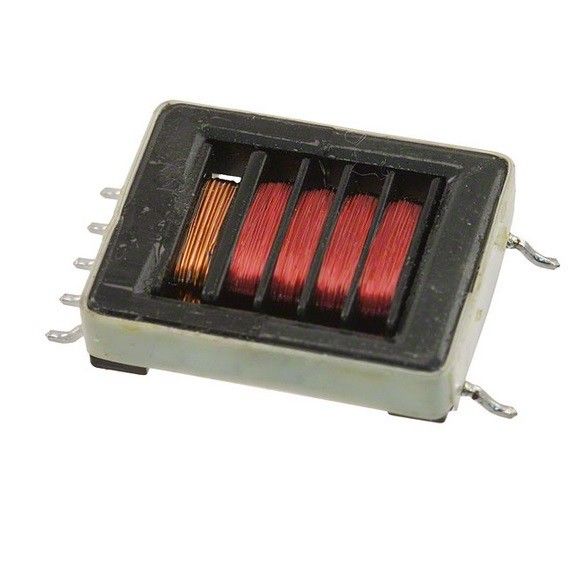

4W/10V SMD LCD/CCFL Driving Inverter Transformer

4W/10V SMD LCD/CCFL Driving Inverter Transformer

4W/10V SMD LCD/CCFL Driving Inverter Transformer

Product Details:

Place of Origin: Mainland China
Brand Name: IKP
Certification: RoHs/CE/UL/SGS
Model Number: IKP-CTX2104-4010

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: USD:2.0-8.0
Packaging Details: CTN
Delivery Time: 3-10 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20,000PCS/WEEK
Contact Now
Detailed Product Description

Description

•Transformer for use in CCFL power supplies, available in through-hole and surface mount recess or gull wing versions, incorporating floating or fixed secondary technology

•Supply output current up to 30 milli-Amps

•Frequency range from 40 to 80 KHz

•Deliver output power: 4 Watts

•Operate in royer and other topologies

•Ferrite core material

Applications

•CCFL power supplies

Environmental Data

•Storage temperature range: -40℃ to +85℃

•Operating ambient temperature range: 0℃ to +70℃

•Solder reflow temperature: +260℃max, for 10 seconds max

Packaging

•Supplied in bulk packaging



Part Number

Schematic

Diagram

Pout

Walts

Lp

μH2

DCRp

Ohms Max

DCRs

Ohms Max

TR

Ns/Np

Vpri

Volts Max2

Vsec

Volt Max2

Is Max

A rms

Vpri

Abnormal2

Vsec

Abnormal2

CTX210403-R

C

4

44

0.220

165

50

26

1340

.007

40

2000

CTX210407-R

C

4

27

0.160

220

86

15

1340

.007

23

2000

CTX210409-R

C

4

20

0.160

220

100

13

1340

.007

23

2000

CTX210411-R

C

4

20

0.160

330

125

10

1340

.007

16

2000

CTX310403-R

C

4

44

0.220

165

50

26

1340

.007

40

2000

CTX310407-R

C

4

27

0.160

220

86

15

1340

.007

23

2000

CTX310409-R

C

4

20

0.160

220

100

13

1340

.007

23

2000

CTX310411-R

C

4

20

0.160

330

125

10

1340

.007

16

2000
