    Product Details:

    Place of Origin: China
    Brand Name: IKP
    Certification: CE/UL/REACH/RoHS
    Model Number: TOROIDAL SERIES

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 PCS
    Price: USD+0.05~5.00+Pieces
    Packaging Details: CARTON
    Delivery Time: 3~5 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 10000 piece/week
    Contact Now
    Detailed Product Description
    Core Type: Toroid Cores: Double Cores
    Bobbin: Custom Design: OEM/ODM

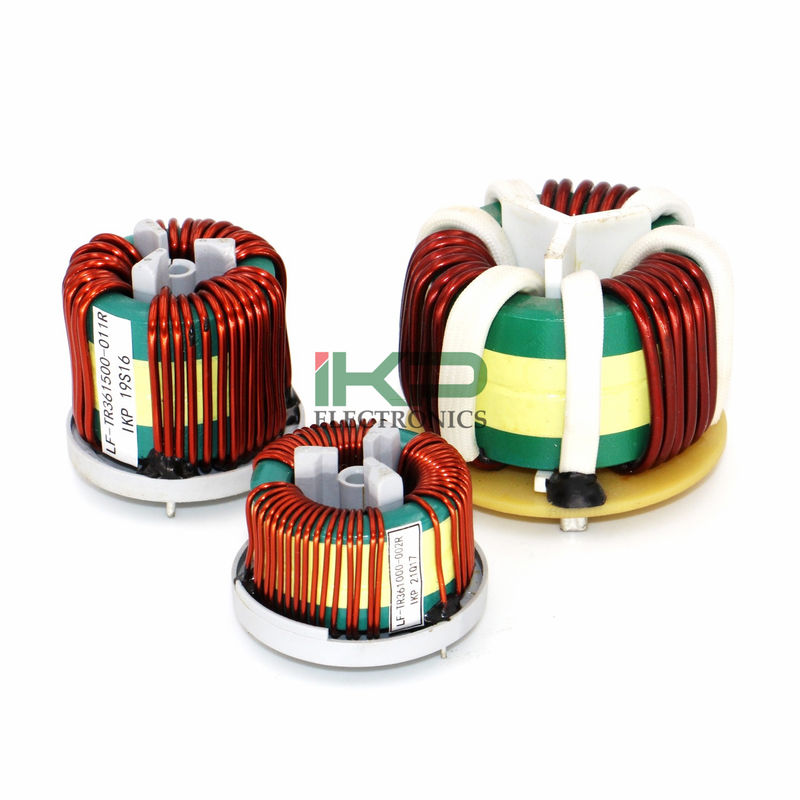

    Three Phase Horizontal Ferrite Core Common Mode Filter Choke Coils

    A large range of toroidal common mode chokes is available, all type of material are used and especially nanocrystalline material which allow a standard range from 0.3 A up to 50 A and far more on custom designed products. All mountings are available, vertical, horizontal, bare coil, and a new range of SMD power chokes.



    Characteristics:

    Application up to 760 VAC

    High permeability MnZn Ferrite or nanocrystalline core material

    Improved insulation through plastic case and winding spacer

    Patented design

    Specification according to EN 60938-2

    Air and creepage distances ≥ 7 mm

    Rated current up to 46 A

    Attenuation up to 60 dB

    Suppression frequency range: 1 kHz to 20 MHz depending from used core material

    Operating temperature: -40 °C to +125 °C

    Flammability corresponding to UL 94 V-0



    Applications:

    Power electronics

    Power line input filter

    Radio interference suppression in motors

    Suppression for common mode noise

    Frequency converter

    Power supplies

    Charging stations
