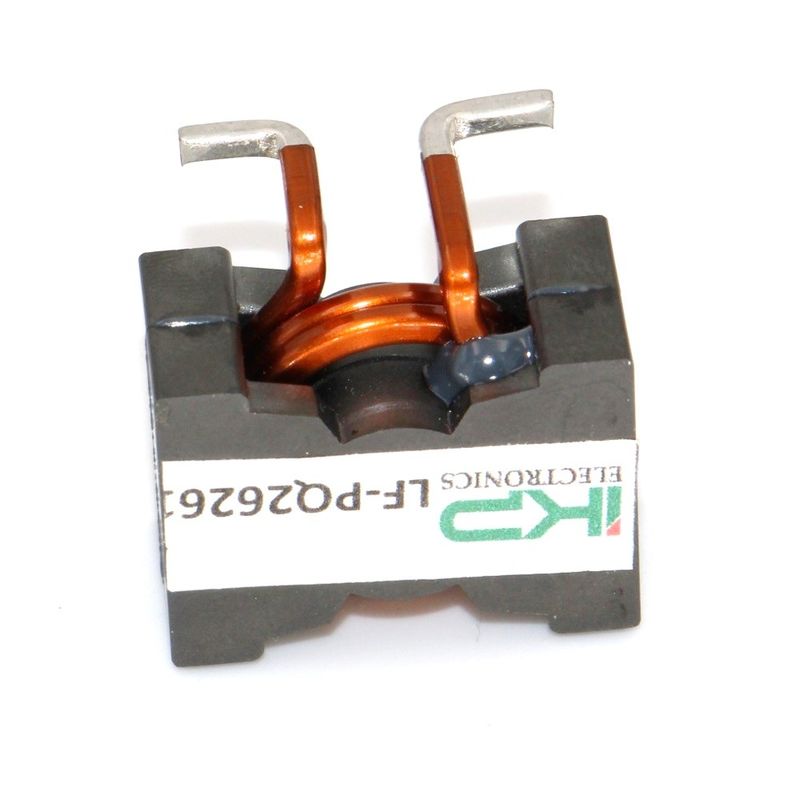

Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics

Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics

    • Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics
    • Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics
    • Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics
    • Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics
    • Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics
  • Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics

    Product Details:

    Place of Origin: China
    Brand Name: IKP
    Certification: UL/CE/RoHS/REACH
    Model Number: LF-PQ261200-1R5R-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: CNY+0.55~0.95+PIECES
    Packaging Details: Blister tray + carton + tray
    Delivery Time: 5-10 work days
    Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
    Supply Ability: 10000+pieces+per day
    Contact Now
    Detailed Product Description
    Material: Soft Ferrite Core Coil: Flat Wire
    Type: Shielded 2612/14

    Flat lines are ideal for high power applications. In high-power inductor designs, enameled wires have no advantage. The flat wire saves space and is also beneficial for automated production.



    The flat wire has excellent heat dissipation and is suitable for high power and high density inductor applications.



    Flat wire winding achieve a very low DCR, closed magnetic circuit, ultra-low buzz noise. The flat wire avoids the proximity effect, so that its cross section can be used 100%.



    The flat wire can evenly disperse the electric field, minimize parasitic capacitance, achieve the best EMI effect, and completely solve the electromagnetic compatibility problem.



    FEATURES:

    •Core Size: PQ2012/2014/2016/2614/2915/2918

    •Flat wire winding, Magnetically shielded

    •Lower DC resistance (DCR)

    •Lower AC resistance (skin effect loss)

    •High saturation current

    •Extra solder pad for increased mechanical stability

    •RoHS compliant and halogen free



    Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics



    Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics

    PART NO. A B C(MAX) D(MAX) E(MIN) F G
    PQ2012 20.5±0.4 14.0±0.3 22.5 12.0 2.0 3.5±0.2 5.0±0.2
    PQ2014 20.5±0.4 14.0±0.3 22.5 14.5 2.0 3.5±0.2 5.0±0.2
    PQ2016 20.5±0.4 14.0±0.3 22.5 16.5 2.0 3.5±0.2 5.0±0.2
    PQ2614 27.5±0.5 19.5±0.5 27.9 16.0 3.8 3.8±0.2 6.6±0.5
    PQ2915 27.5±0.5 19.5±0.5 27.9 15.4 3.8 3.8±0.2 6.6±0.5
    PQ2918 27.5±0.5 19.5±0.5 27.9 17.8 3.8 3.8±0.2 6.6±0.5


    Part

    Number

    Rated Current

    (A)MAX

    Inductance

    (uH) MIN

    DCR

    (mΩ) MAX

    PQ2614-1R0L >100 1.0 1.2
    PQ2614-1R5L >100 1.5 1.6
    PQ2614-2R2H >100 2.2 1.9
    PQ2614-2R2L 84.0 2.2 1.6
    PQ2614-3R3H 66.9 3.3 1.9
    PQ2614-3R3L 54.0 3.3 1.6
    PQ2614-4R7H 48.0 4.7 1.9
    PQ2614-4R7L 36.9 4.7 1.6
    PQ2614-6R8H 34.5 6.8 1.9
    PQ2614-6R8L 26.0 6.8 1.6
    PQ2614-100H 21.5 10 1.9
    PQ2614-100L 16.2 10 1.6
    PQ2614-150H 14.0 15 1.9
    PQ2614-150L 9.8 15 1.6
    PQ2614-220H 8.6 22 1.9
    PQ2614-220L 6.0 22 1.6
    PQ2614-330H 5.1 33 1.9
    PQ2614-330L 2.6 33 1.6





    Flat Wire Pq Core High Current Power Choke for DC-DC Converter of IKP Electronics
