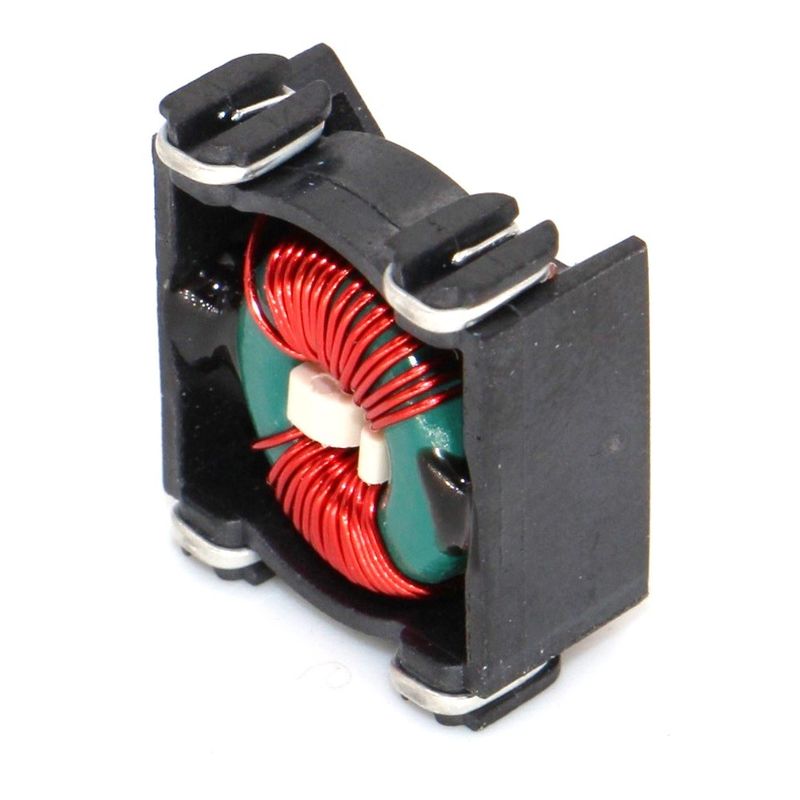

SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB

SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB

    • SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB
    • SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB
    • SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB
    • SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB
    • SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB
  • SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB

    Product Details:

    Place of Origin: China
    Brand Name: IKP
    Certification: CE/UL/RoHS/REACH
    Model Number: LF-TR Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: CNY+0.23~0.43+Pieces
    Packaging Details: Blister tray + carton + tray
    Delivery Time: 5-10 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20000+Pieces+per week
    Contact Now
    Detailed Product Description
    Core Shape: Toroidal Type: SMD For PCB
    Custom: Special Plastic Case

    A large range of toroidal common mode chokes is available, all type of material are used and especially nanocrystalline material which allow a standard range from 0.3 A up to 50 A and far more on custom designed products. All mountings are available, vertical, horizontal, bare coil, and a new range of SMD power chokes.
    Characteristics:
    Application up to 760 VAC
    High permeability MnZn Ferrite or nanocrystalline core material
    Improved insulation through plastic case and winding spacer
    Patented design
    Specification according to EN 60938-2
    Air and creepage distances ≥ 7 mm
    Rated current up to 46 A
    Attenuation up to 60 dB
    Suppression frequency range: 1 kHz to 20 MHz depending from used core material
    Operating temperature: -40 °C to +125 °C
    Flammability corresponding to UL 94 V-0
    Applications:
    Power electronics
    Power line input filter
    Radio interference suppression in motors
    Suppression for common mode noise
    Frequency converter
    Power supplies
    Charging stations

    SMD Type Toroidal Ferrtie Core Common Mode Choke Coil Inductors for PCB


    Part NumberInductance (MH)IDC (Amps)DCR (OHMS) MAXInductance @10 KHZ NO DC ±15%
    IKP-ACL-XXX-0.05-10.0510.07220
    IKP-ACL-XXX-0.20-10.2010.0857
    IKP-ACL-XXX-0.45-10.4510.12573
    IKP-ACL-XXX-0.80-10.8010.145111
    IKP-ACL-XXX-1.25-11.2510.2170
    IKP-ACL-XXX-1.80-11.8010.235247
    IKP-ACL-XXX-2.45-12.4510.265388
    IKP-ACL-XXX-3.20-13.2010.37564
    IKP-ACL-XXX-4.05-14.0510.6850
    IKP-ACL-XXX-5.00-15.0010.71250
    IKP-ACL-XXX-0.05-30.0530.03122
    IKP-ACL-XXX-0.20-30.2030.0655
    IKP-ACL-XXX-0.45-30.4530.07583
    IKP-ACL-XXX-0.80-30.8030.095133
    IKP-ACL-XXX-1.25-31.2530.118172
    IKP-ACL-XXX-1.80-31.8030.14262
    IKP-ACL-XXX-2.45-32.4530.18429
    IKP-ACL-XXX-3.20-33.2030.22595
    IKP-ACL-XXX-4.05-34.0530.32850
    IKP-ACL-XXX-5.00-35.0030.321500
    IKP-ACL-XXX-0.08-50.0850.0223
    IKP-ACL-XXX-0.30-50.3050.0460
    IKP-ACL-XXX-0.67-50.6750.04272
    IKP-ACL-XXX-1.20-51.2050.058110
    IKP-ACL-XXX-1.25-51.8750.07182
